CLU Variant Coding

  1. If the cluster unit is replaced with a new one, perform the "Variant Coding" procedure using diagnostic tool.
    1. Connect the diagnostic device to the data link connector, turn on the ignition (IGN ON), and then activate the diagnostic tool.
    2. Select the 'Car model' and "Cluster Module".

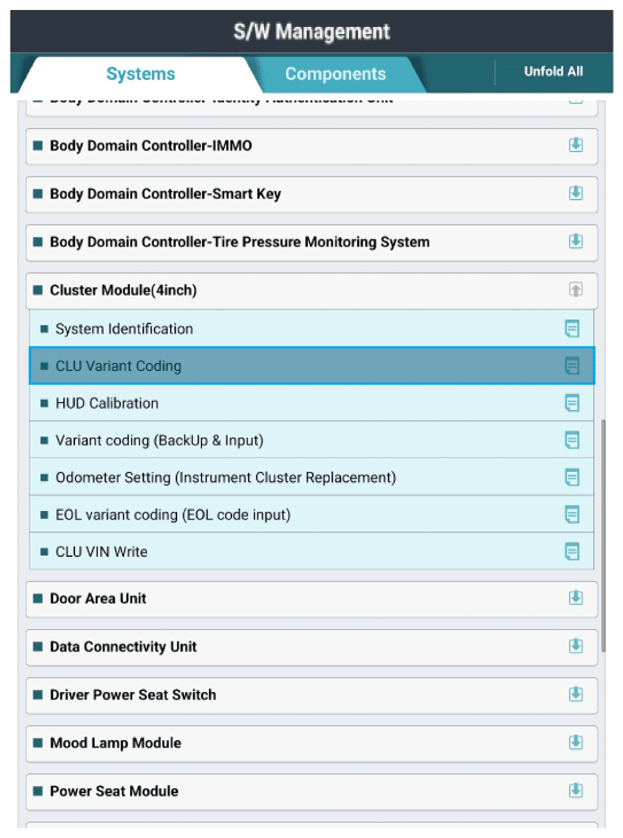

    3. Select the 'CLU Variant Coding' and follow the instructions on the screen.
G16548467Courtesy of HYUNDAI MOTOR AMERICA
