Removal And Installation

Disconnect the battery (-) terminal (A).
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the ignition coil.
(Refer to Engine Electrical System - "IGNITION COIL ")

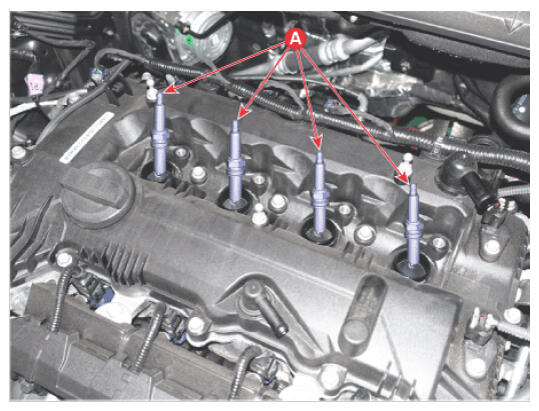

Using a spark plug wrench, remove the spark plugs (A).
Tightening torque :

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful that no contaminants enter into spark plug holes.
Install in the reverse order of removal.
