Charging System: Battery
| Item | Specification |
|---|---|
| Type | AGM70L-DIN |
| Capacity [20HR/5HR] (AH) | 70/56 |
| Cold Cranking Amperage (A) | 760 (SAE)/760 (EN) |
| Reserve Capacity (Min) | 120 |
| Specific Gravity | 1.3 - 1.32 (25°C) |
| Voltage (V) | 12 |
Information

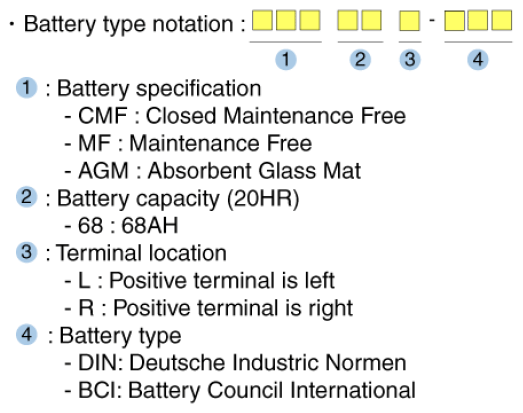

- Model type description
- Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC): Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Information

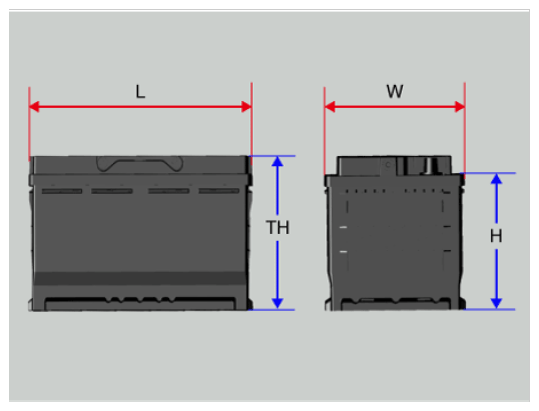

LENGTH, WIDTH AND HEIGHT SPECIFICATION (BCI TYPE)
| Capacity (5 hr/20 hr) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | H (mm) | TH (mm) | |
| 28/35 | 188-192 | 126-130 | 198-202 | 218-222 |
| 32/40 | 194-198 | 133-137 | 199-203 | 223-227 |
| 36/45 | 203-207 | 173-177 | 200-204 | 221-225 |
| 44/55 | 213-217 | 173-177 | 198-202 | 218-222 |
| 48/60 | 228-232 | 173-177 | 20-204 | 221-225 |
| 54/68 | 258-262 | 173-177 | 198-202 | 220-224 |
| 56/70 | 258-262 | 173-177 | 198-202 | 223-227 |
| 64/80 | 274-278 | 170-174 | 198-202 | 221-225 |
| 70/88 | 349-353 | 172-176 | 186-200 | 183-187 |
| 72/90 | 300-304 | 170-174 | 200-204 | 221-225 |
| 76/95 | 294-298 | 172-176 | 198-202 | 220-224 |
| 80/100 | 326-330 | 170-174 | 203-207 | 225-229 |
LENGTH, WIDTH AND HEIGHT SPECIFICATION (DIN TYPE)
| Capacity (5 hr/20 hr) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | H (mm) | TH (mm) | |
| 36/45 | 205-207 | 173-175 | 164-168 | 188-190 |
| 48/60 | 240-242 | 173-175 | 164-168 | 188-190 |
| 54/68 | 276-278 | 173-175 | 164-168 | 188-190 |
| 64/80 | 313-315 | 173-175 | 164-168 | 188-190 |
| 72/90 | 351-353 | 173-175 | 164-168 | 188-190 |
| 80/100 | 351-353 | 173-175 | 164-168 | 188-190 |
| 88/110 | 392-394 | 173-175 | 164-168 | 188-190 |
LENGTH, WIDTH AND HEIGHT SPECIFICATION (AGM DIN TYPE)
| Capacity (5 hr/20 hr) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | H (mm) | TH (mm) | |
| 40/50 | 205-207 | 173-175 | 164-168 | 188-190 |
| 48/60 | 227-229 | 173-175 | 164-168 | 188-190 |
| 56/70 | 276-278 | 173-175 | 164-168 | 188-190 |
| 64/80 | 312-314 | 173-175 | 164-168 | 188-190 |
| 72/90 | 351-353 | 173-175 | 164-168 | 188-190 |
| 84/105 | 392-394 | 173-175 | 164-168 | 188-190 |
