Removal And Installation
- Disconnect the battery negative (-) terminal.

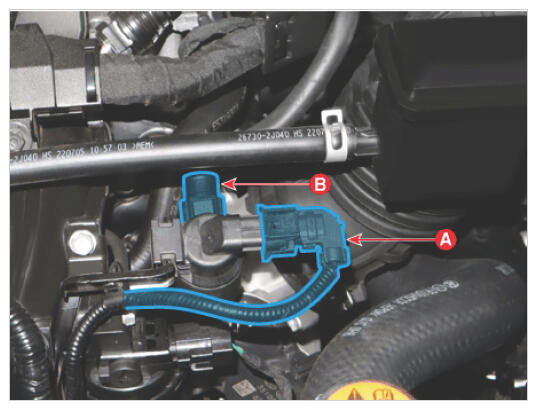

- Disconnect the Purge Control Solenoid Valve (PCSV) connector (A).
- Separate the vapor hose quick-connector (B).

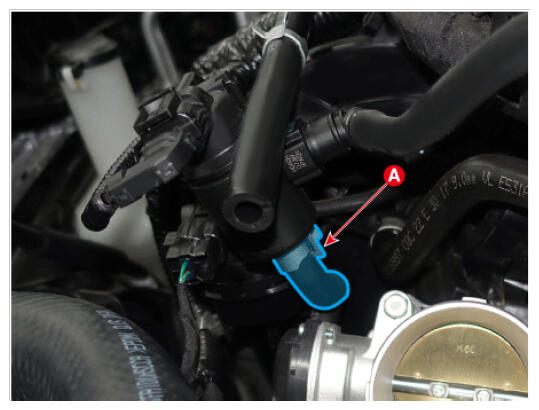

- Separate the vapor hose (A).

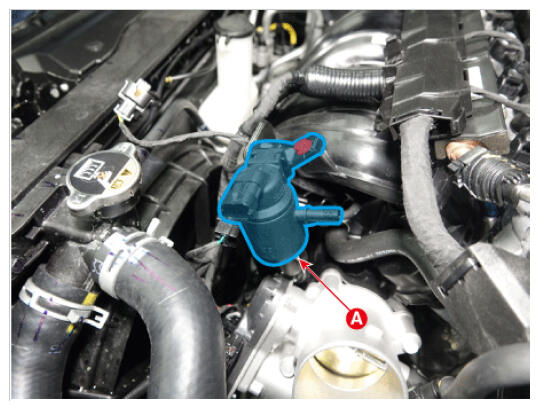

- Remove the Purge Control Solenoid Valve (PCSV) (A) after the removing the bolt.
Tightening Torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Install in the reverse order of removal.
