Home >> Hyundai >> 2025 >> Kona SE, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0 >> Knock Sensor (KS) >> Components And Components Location >> Components Location

Components Location

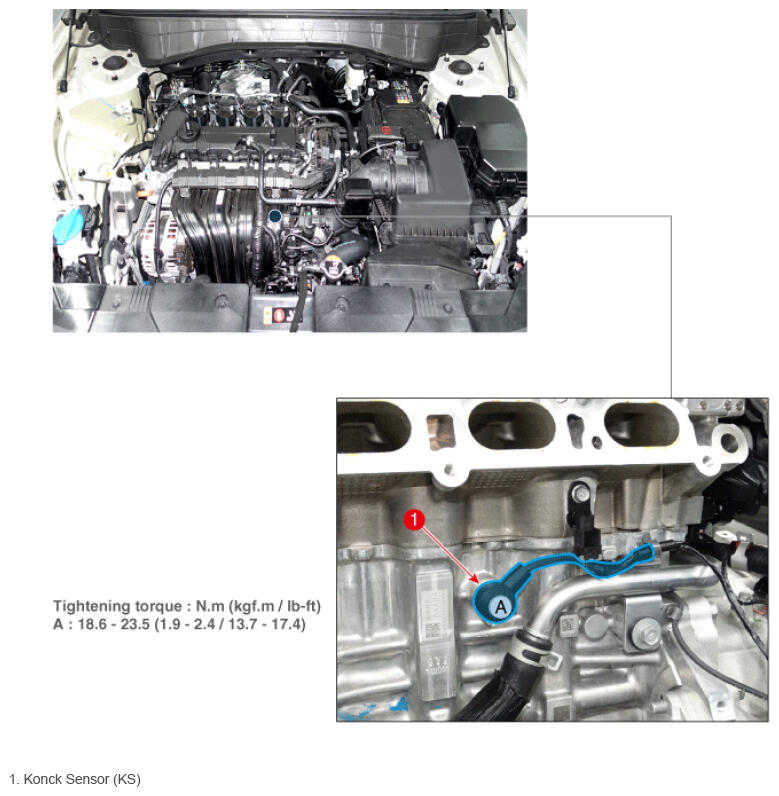

Fig 1: Knock Sensor Components Location With Torque Specification
G16544772Courtesy of HYUNDAI MOTOR AMERICA
