Removal And Installation
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery (-) terminal.
- Remove the front door window glass.
(Refer to the Front Door - "FRONT DOOR WINDOW GLASS ")

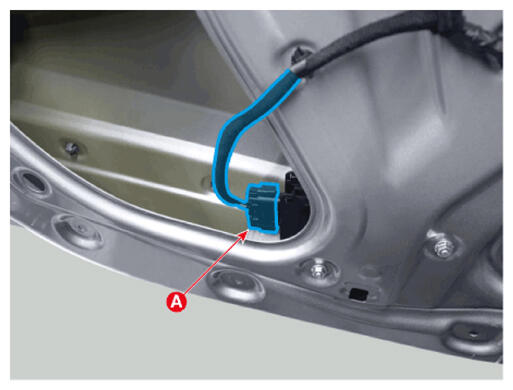

- Disconnect the window motor connector (A).

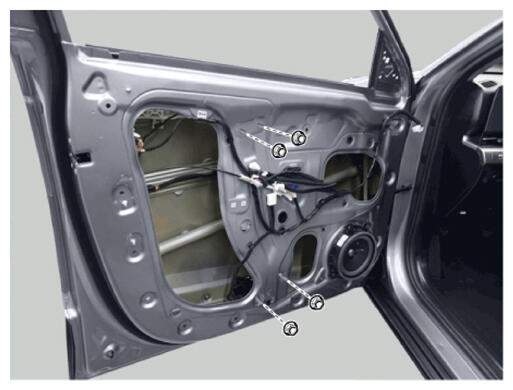

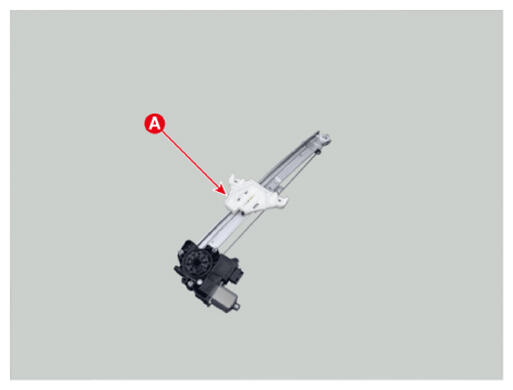

- Remove the power window regulator (A), after removing the nuts.
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install in the reverse order of removal.
