Shift Lever: Removal
- Disconnect the battery negative (-) terminal.

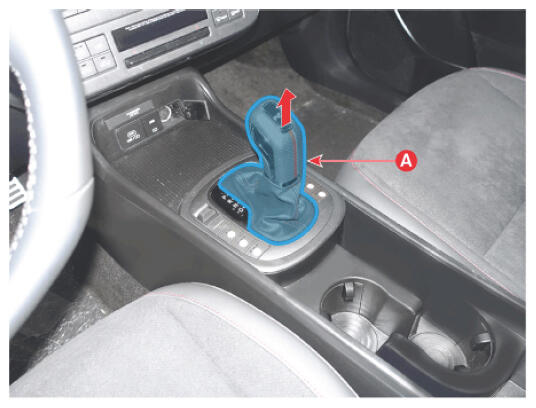

- Remove the shift lever knob & boots (A) and pull both up.
- Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

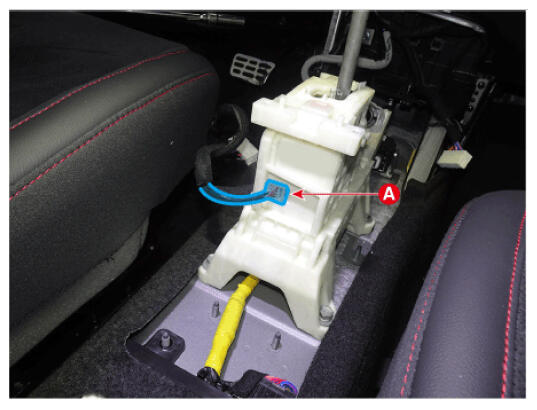

- Disconnect the shift lever connector (A).

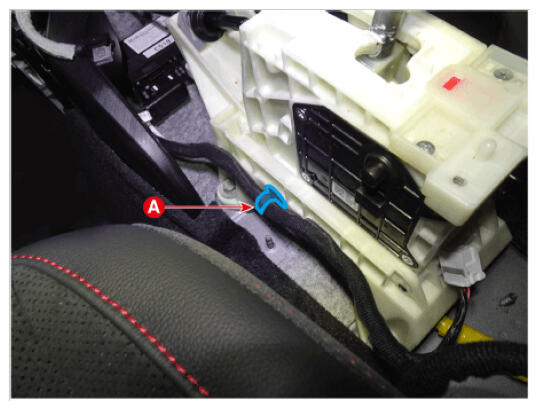

- Remove the wiring clip (A).

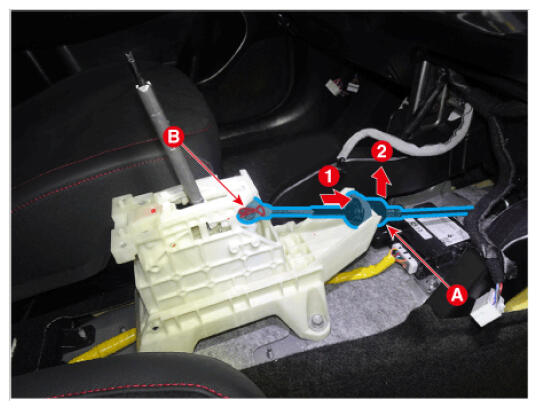

- Remove the shift cable (A) after removing the snap pin (B).

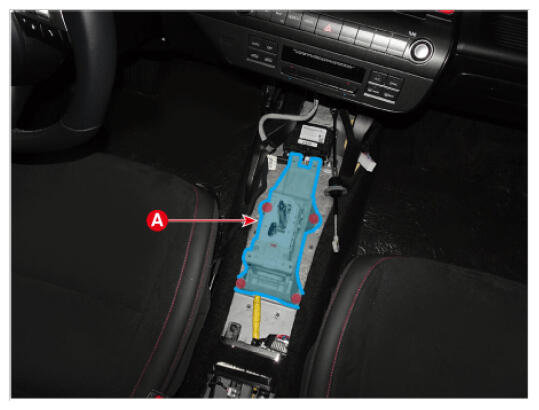

- Remove the shift lever assembly (A) after removing the bolts.
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
