Transfer Fluid: Replacement

Information

Change		Capacity	Specification
Normal Use	Severe Use	Filled up to lower filler plug thread level. [A Type]: Filled up to lower filler plug thread 0.5L ± 0.0225L (0.13 U.S gal, 0.52 U.S qt, 0.44 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.02 lmp qt) [B Type]: 0.65 L (0.17 U.S.gal, 0.69 U.S.qt, 0.57 lmp, qt)	API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent)
No service required	120, 000 km (80, 000 miles)

Severe driving conditions

Driving in dusty, rough roads
Drivng in mountains areas
Driving for patrol car, taxi, commercial car or vehicle towing
Driving over 170Km/h

* Transfer oil should be replaced if the transfer assembly falls into the water.

CAUTION: Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")

Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

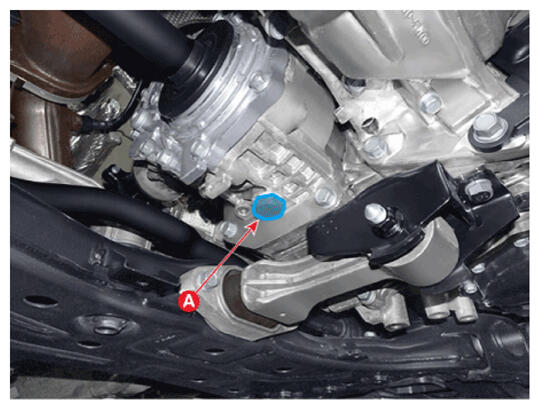

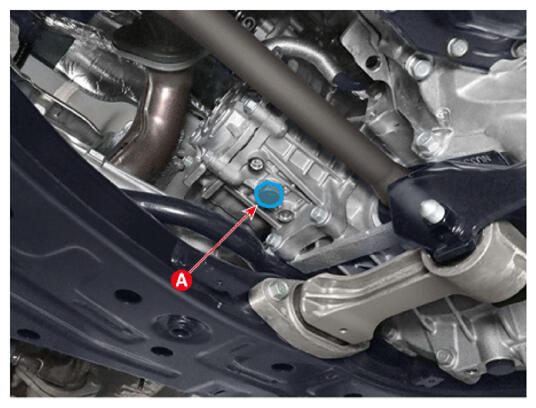

Drain the transfer oil after loosening the drain plug (A).
[A Type]

Courtesy of HYUNDAI MOTOR AMERICA

[B Type]

Courtesy of HYUNDAI MOTOR AMERICA
Install the drain plug with new gasket.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

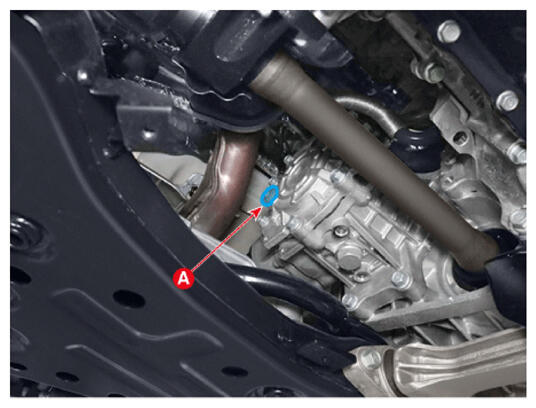

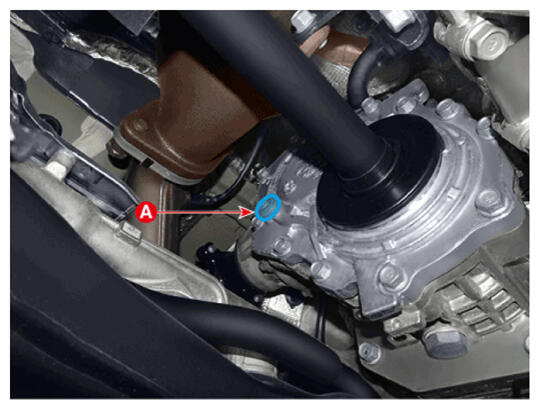

Refill the transfer specified oil after loosening the filler plug (A).
Specified oil: API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent)

Capacity: Filled up to lower filler plug thread level.

[A Type]: 0.5L ± 0.0225L(0.13 U.S gal, 0.52 U.S qt, 0.44 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.02 lmp qt)

[B Type]

[A Type]

Courtesy of HYUNDAI MOTOR AMERICA

[B Type]

Courtesy of HYUNDAI MOTOR AMERICA
Install the filler plug with new gasket.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
Install the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
