Front Wheel Transfer Assembly: Installation

Install in the reverse order of removal.
NOTE:
- Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
- Smear and cover splines (B) with molybdenum type high pressure grease.
GREASE SPL-1 equivalent (MS511-07)

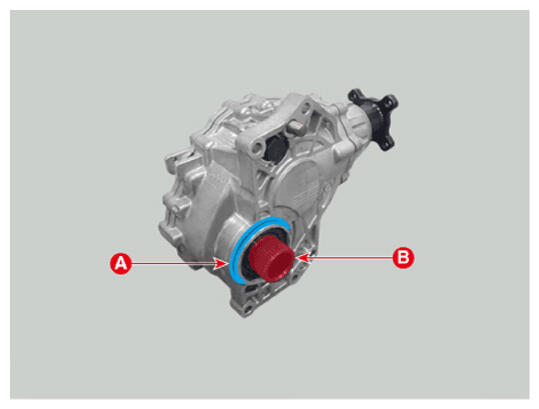

[A Type]

Courtesy of HYUNDAI MOTOR AMERICA

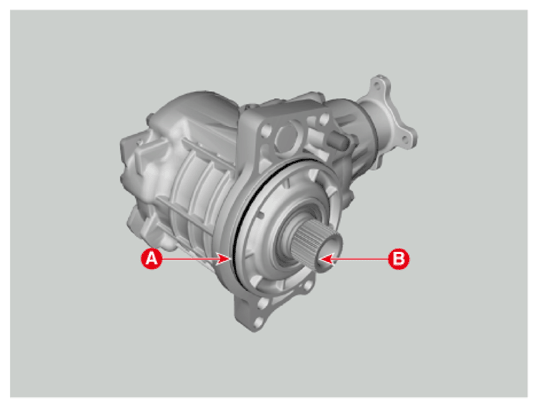

[B Type]

Courtesy of HYUNDAI MOTOR AMERICA

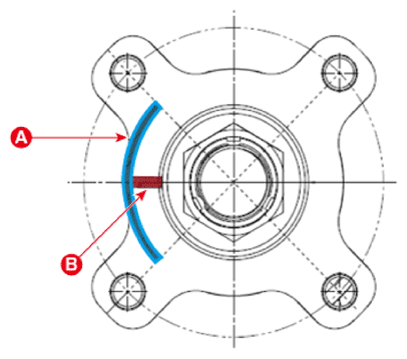

- Install the propeller shaft to be near runout marking (Transfer assembly 1ea (A), propeller shaft 1ea (B) each other.
Courtesy of HYUNDAI MOTOR AMERICA
