LEMON Manuals: Even more car manuals for everyone

Home >> Hyundai >> 2025 >> Kona N Line, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> IVT Control System - SBC >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

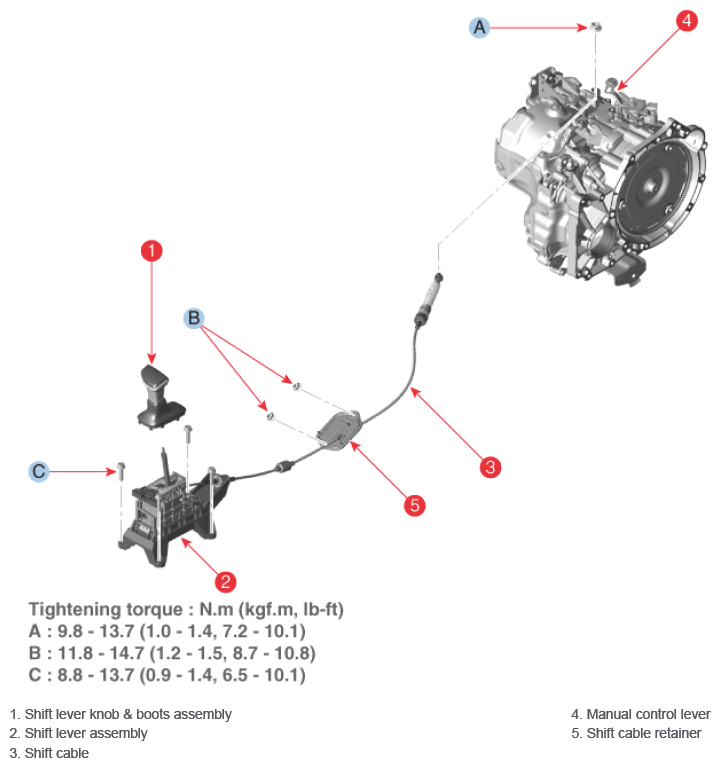

Fig 1: Shift Cable Components Location With Torque Specification

G16543416

Courtesy of HYUNDAI MOTOR AMERICA
