Automatic Transaxle: Installation

  1. Install in the reverse order of removal.
    CAUTION:

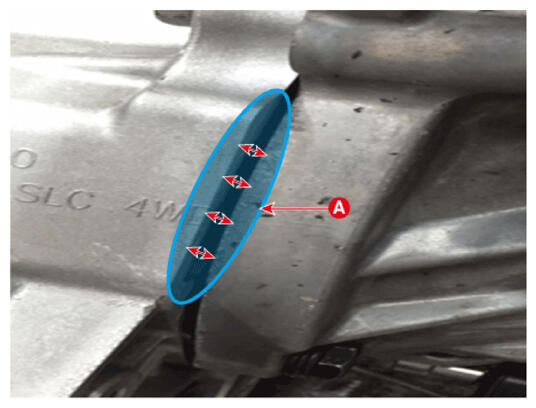

    1. Before reassembling the automatic transaxle to the engine assembly, make sure that there is no gap (A) between automatic transaxle and engine assembly as shown in the illustration below. Do not reassemble the automatic transaxle to the engine assembly when this gap (A) exists.
      G16545883Courtesy of HYUNDAI MOTOR AMERICA
    2. While there is a gap, it would be meaning that the key of oil pump gear is not assembled properly to the torque converter hub. In this case, remove the automatic transaxle assembly and then reinstall the torque converter to automatic transaxle assembly according to the key shape of oil pump gear.

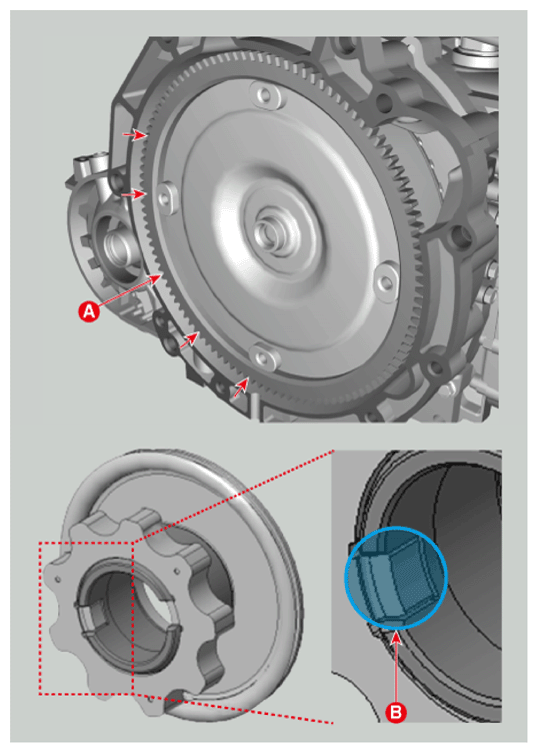

      [Correct Assembly (A) - Oil Pump Key Part (B) Engaged Properly]

      G16545884Courtesy of HYUNDAI MOTOR AMERICA

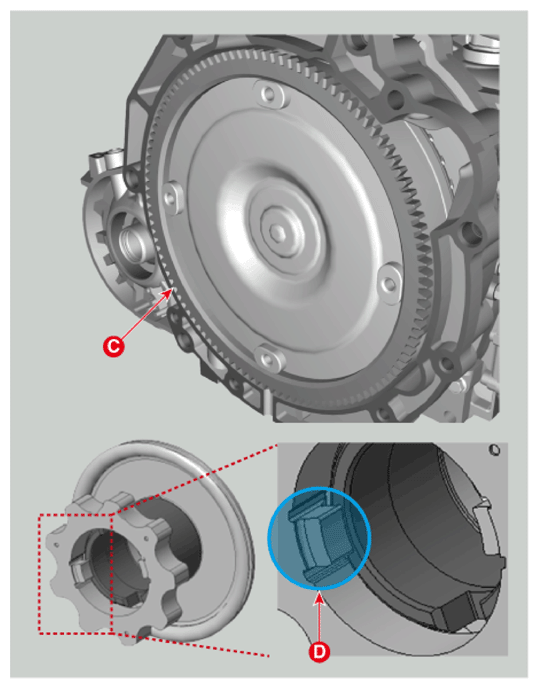

      [Incorrect Assembly (C) - Torque Converter Protruded due to Interference with the Oil Pump Key Part (D)]

      G16545885Courtesy of HYUNDAI MOTOR AMERICA
    3. If the mounting bolt is tightened forcibly in spite of a gap, key of oil pump gear will be damaged or broken. In this case, replace the automatic transaxle assembly.
    NOTE:
    • Follow each procedure below according to reinstallation or replacement with a new automatic transaxle.
  2. Reinstallation procedure:
    1. Replace the oil seal with a new one when ATF leak occurred because of differential oil seal damage.
      NOTE:
      • When installing the new oil seal, use the special service tool (09452-26100, 09231-H1100, 09453-2W100) (A).

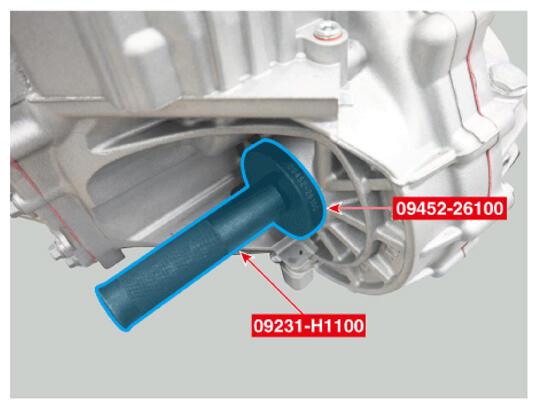

      [Automatic transaxle case side]

      G16545886Courtesy of HYUNDAI MOTOR AMERICA

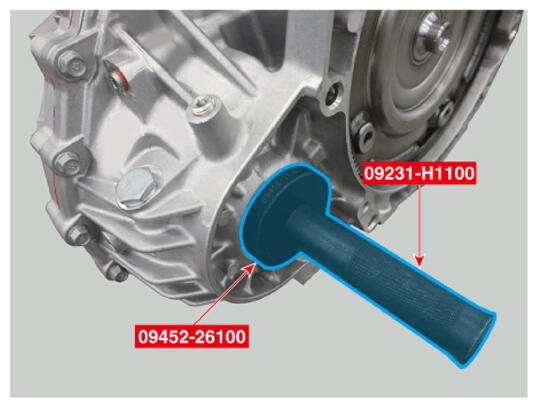

      [Torque converter housing side]

      [2WD]

      G16545887Courtesy of HYUNDAI MOTOR AMERICA

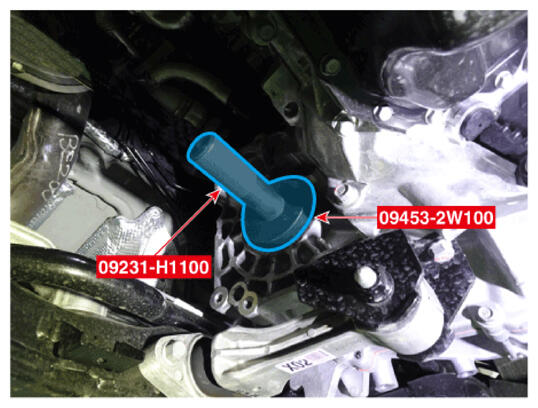

      [4WD]

      G16545888Courtesy of HYUNDAI MOTOR AMERICA
    2. Check the ATF level after refilling the automatic transaxle with fluid.

      (Refer to Hydraulic System - "SUPPLEMENT ")

    3. Clear the diagnostic trouble codes (DTC) using the diagnostic tool.
    NOTE:
    • Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the diagnostic tool.
  3. When with a new automatic transaxle:
    NOTE:
    • New automatic transaxle is already filled with specified quantity ATF.

    For that reason, it is not necessary to refill and check the ATF, but the remaining ATF inside of ATF cooler has to be removed.

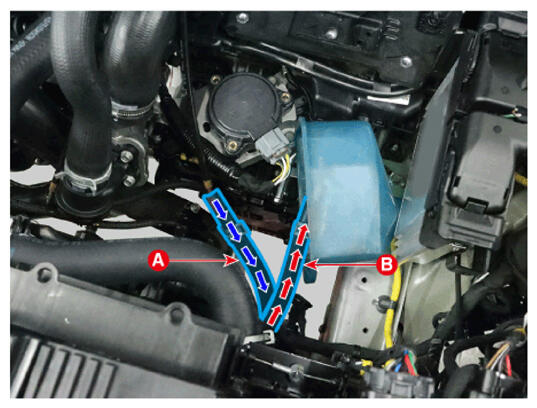

    1. Set the air blow gun in front of the ATF cooler hose (A).
    2. Set the cup in front of the ATF cooler hose (B).
    3. Remove the remaining ATF by blowing air into ATF cooler hose.
    4. Install the ATF cooler hose (A) and (B).
      G16545889Courtesy of HYUNDAI MOTOR AMERICA
    5. Clear the diagnostic trouble codes (DTC) using the diagnostic tool.
      NOTE:
      • Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the diagnostic tool.

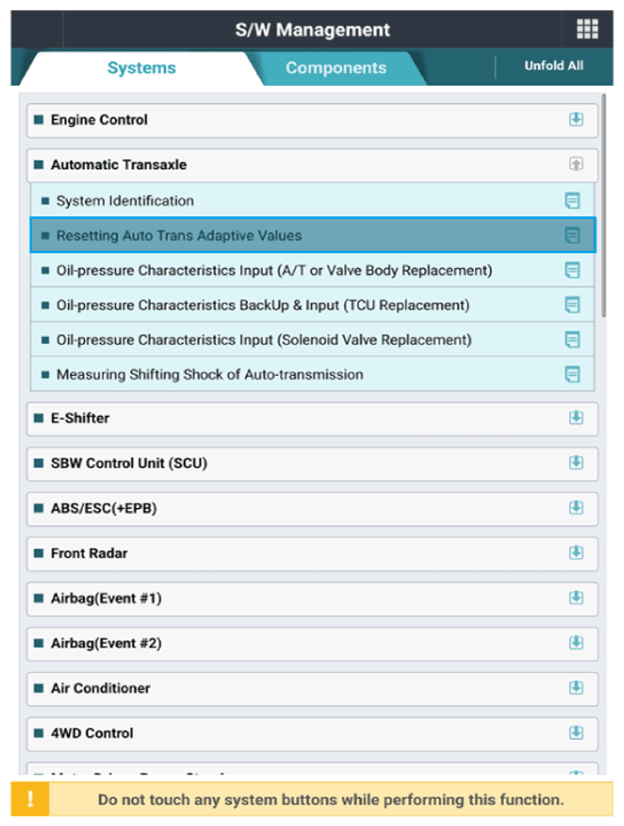

    6. Reset the automatic transaxle adaptive values using the diagnostic tool.
      G16545890Courtesy of HYUNDAI MOTOR AMERICA
    7. Perform the oil pressure characteristics input procedure.

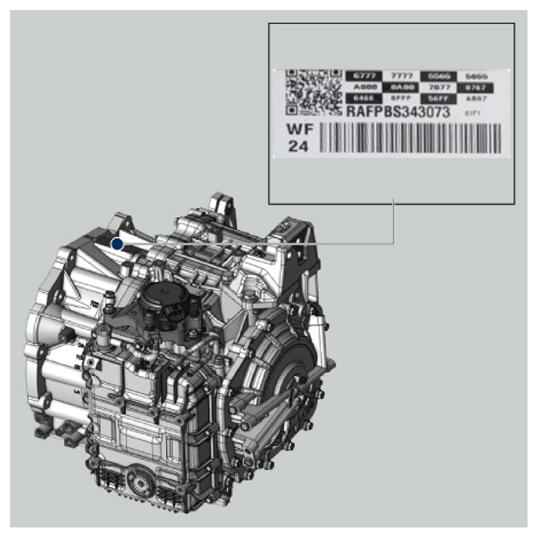

      • Oil pressure characteristics (bar code) location
        G16545891Courtesy of HYUNDAI MOTOR AMERICA

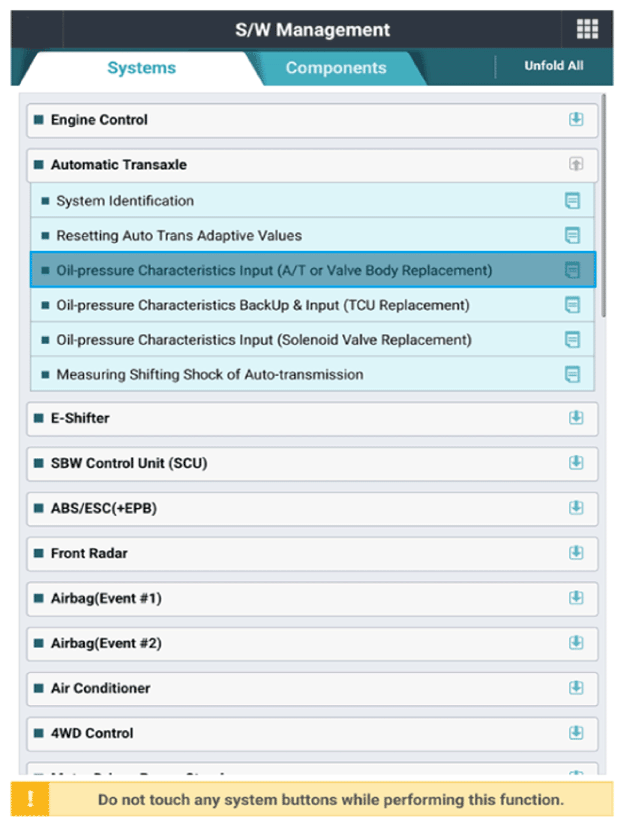

      • Oil-pressure characteristics input (A/T or Valve Body Replacement)
      G16545892Courtesy of HYUNDAI MOTOR AMERICA
    8. Perform the TCM adaptive values learning procedure.

      (Refer to Automatic Transaxle Control System - "ADJUSTMENT ")
