Wheel Alignment: Tires/Wheels/Alignment: Wheel: Installation

Install the wheel and tire (A).

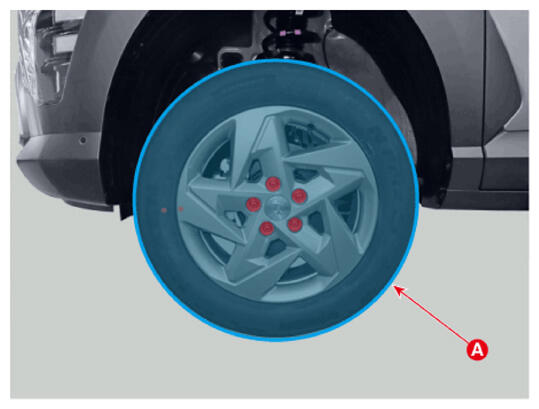

[Front]

Courtesy of HYUNDAI MOTOR AMERICA

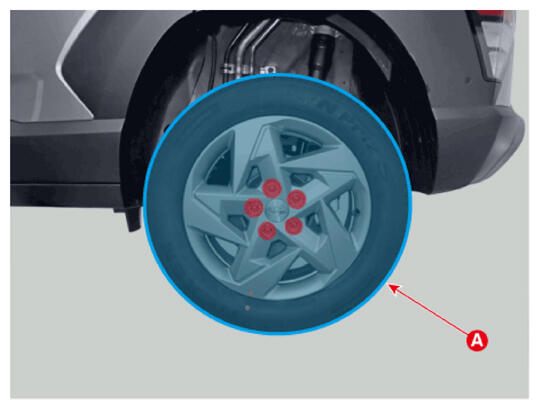

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA
Tighten the hub nuts as follows:
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- When using an impact gun, final tightening torque should be checked using a torque wrench.

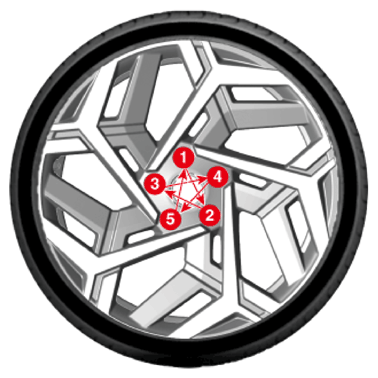

Fig 1: Hub Nuts Tightening Sequence
Courtesy of HYUNDAI MOTOR AMERICA
