Rear Wheel Alignment: Toe

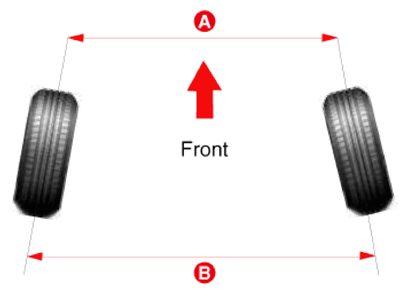

G16546683

Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)

Toe

Total: 0° ± 0.2°

Individual: 0° ± 0.1°
