Toe Adjustment

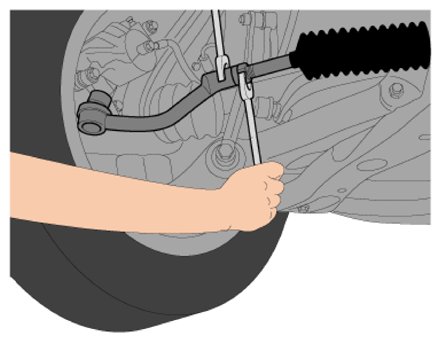

- Loosen the tie rod end lock nut.
- Remove the bellows clip to prevent the bellows from being twisted.
- Adjust the toe by threading or unthreading
the tie rod. Toe adjustment should be made by turning the right and left tie rods by the same amount.
Toe
Total: 0.1° ± 0.2°
Individual: 0.05° ± 0.1°
Tie rod Direction of rotation Toe Left side Rotates backward Decrease (Toe in) (Driver side) Rotates forward Increase (Toe out) Right side Rotates backward Increase (Toe out) (Passenger side) Rotates forward Decrease (Toe in) - When completing the toe adjustment, install the bellows clip, and tighten the tie rod end lock nut to specified torque.
Tightening torque:
49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)
