Variant Coding: Notes
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the vehicle and the diagnostic tool.NOTE:
- In order to use the diagnostic tool normally, the vehicle status is maintained at "ACC ON". (Avoid system errors)
- Be careful not to let the battery discharge when using the diagnostic tool.

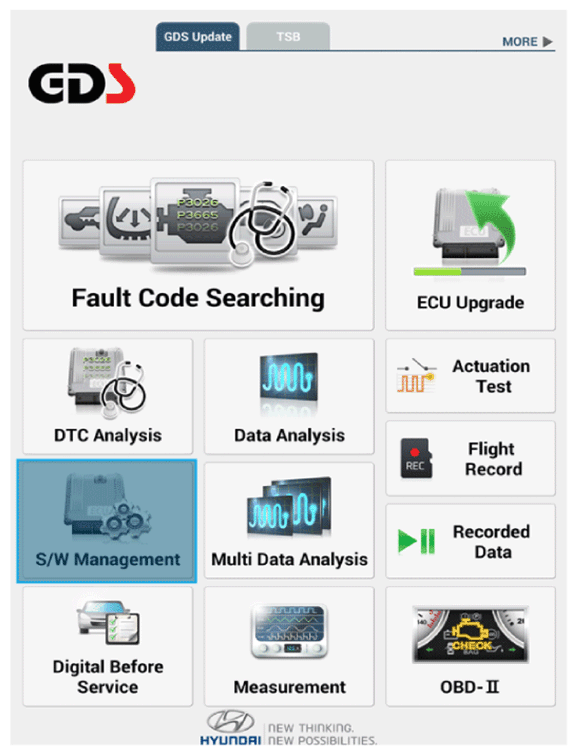

- Select the "S/W Management".

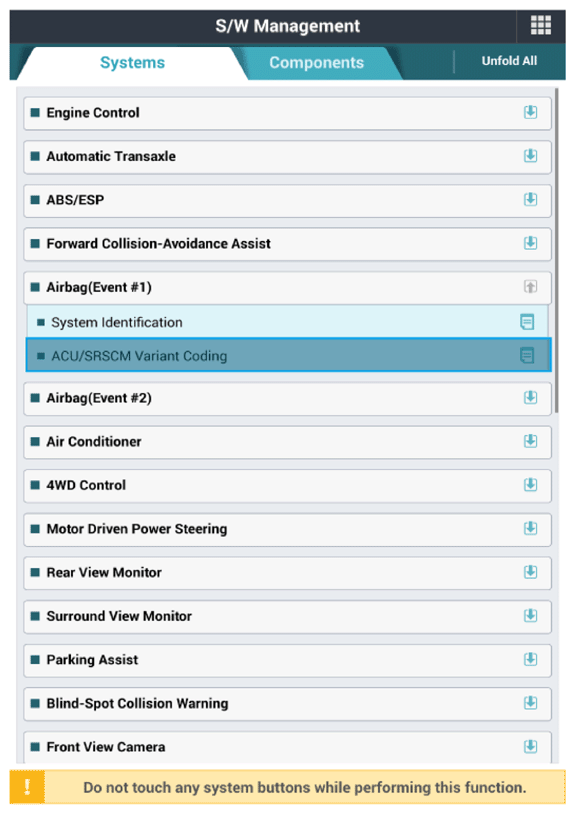

- Select "Airbag" and "ACU/SRSCM Variant Coding".
Information
- Additional procedures: Follow the instructions of the diagnostic tool.
