Data Connectivity Unit (DCU): Removal
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery (-) terminal.
- Remove the crash pad center panel.
(Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

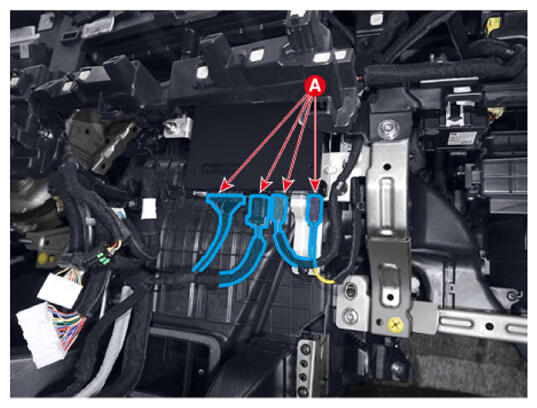

- Disconnect the data connectivity unit connector (A).

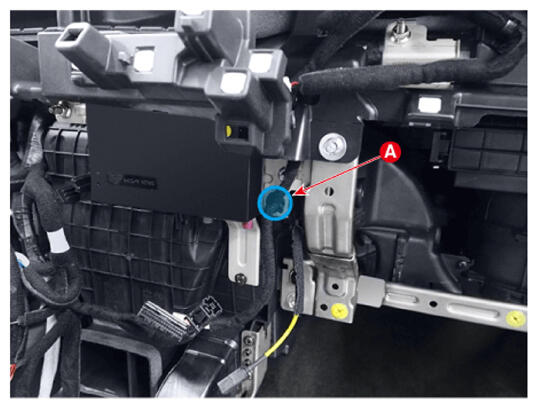

- Remove the data connectivity unit wiring clip (A).

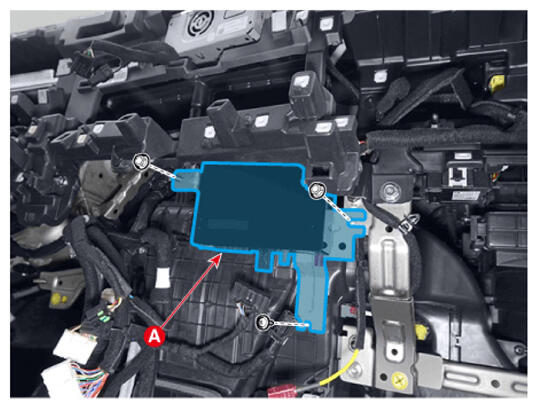

- Remove the data connectivity unit (A), after removing the nuts and screw.
