Removal And Installation

  1. Disconnect the battery negative (-) terminal.

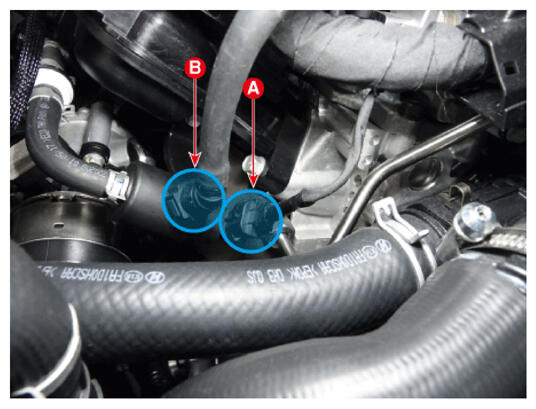

  2. Disconnect the Purge Control Solenoid Valve (PCSV) connector (A) and vapor hose (B).
    G16545676Courtesy of HYUNDAI MOTOR AMERICA

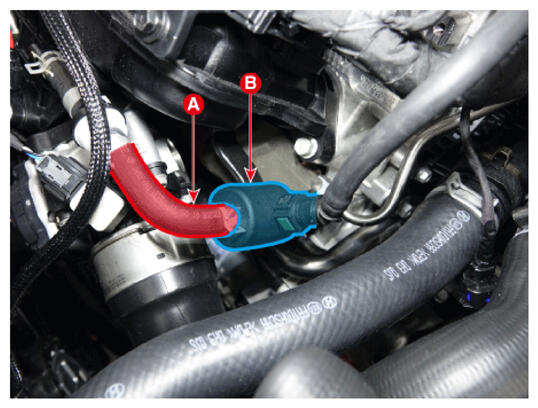

  3. Separate the vapor hose (A) by releasing the clamp.
  4. Remove the Purge Control Solenoid Valve (PCSV) (B).
    G16545677Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
