Continuous Variable Valve Duration (CVVD) Actuator: Adjustment

  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".
  5. Select "CVVD Intake Adaption".

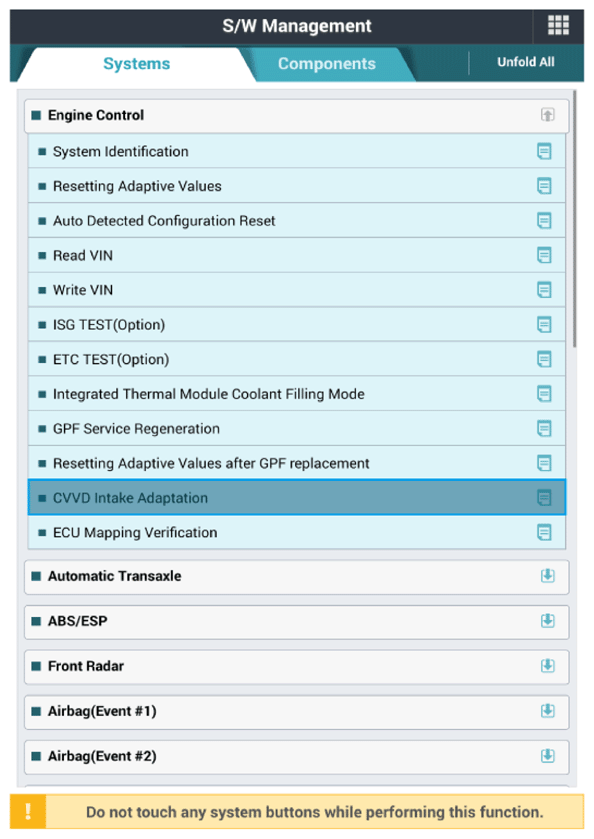

    G16545716Courtesy of HYUNDAI MOTOR AMERICA
  6. Perform the "CVVD Learning" refer to the diagnostic tool.
G16545717Courtesy of HYUNDAI MOTOR AMERICA

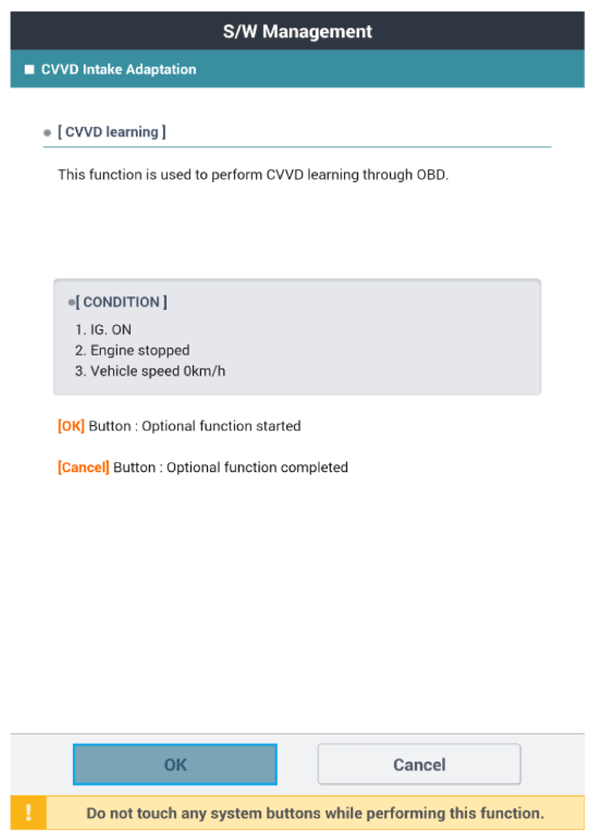

G16545718Courtesy of HYUNDAI MOTOR AMERICA
