IMS Button

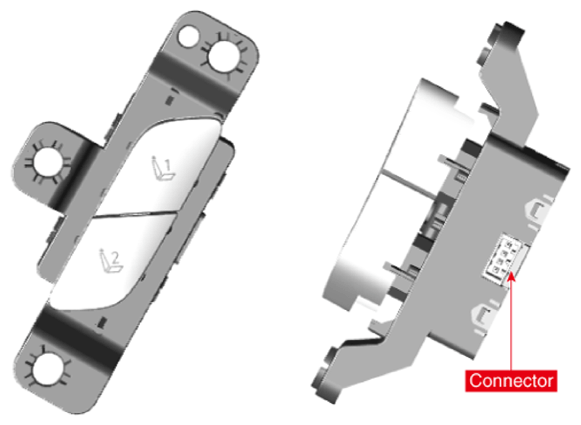

G16548637Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin No Function
G16548638Courtesy of HYUNDAI MOTOR AMERICA
 1 ILL (+)
2 IMS Switch
3 Ground
4 ILL (-)
