Removal And Installation

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery (-) terminal.
  2. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

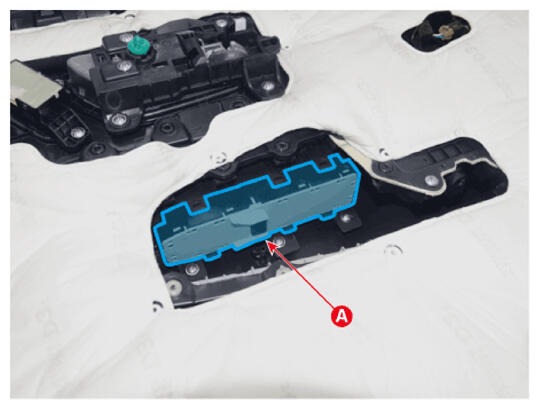

  3. Remove the power window switch (A).
    G16547564Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
