Connector And Terminal Information

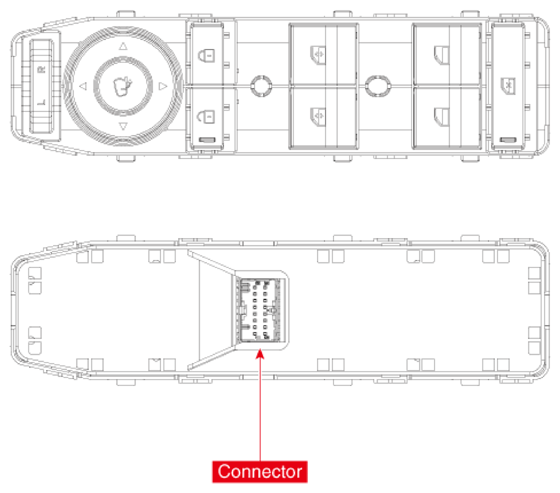

Connector and Terminal Information
| With IMS | Without IMS | ||
|---|---|---|---|
| Pin No | Function | Pin No | Function |
| 1 | Batter (+) | 1 | Battery (+) |
| 2 | - | 2 | LH Mirror motor (Horizontal) |
| 3 | - | 3 | Mirror motor (COM) |
| 4 | - | 4 | LH Mirror motor (Vertical) |
| 5 | - | 5 | RH Mirror motor (Horizontal) |
| 6 | - | 6 | RH Mirror motor (Vertical) |
| 7 | - | 7 | Mirror folding motor |
| 8 | - | 8 | Mirror unfolding motor |
| 9 | IGN1 | 9 | IGN1 |
| 10 | - | 10 | - |
| 11 | B-CAN (High) | 11 | B-CAN (High) |
| 12 | B-CAN (Low) | 12 | B-CAN (Low) |
| 13 | - | 13 | - |
| 14 | IMS Switch | 14 | - |
| 15 | IMS Switch ground | 15 | - |
| 16 | Ground | 16 | Ground |
