Function Of Safety Power Window: Notes
When driver door power window auto-up switch is operated, safety function is activated.
- Safety function condition
When the force of 100N is detected, (using the 10N/mm spring) during the window rising, window is reversed.
- Length of window reversing (except holding the auto-up switch)

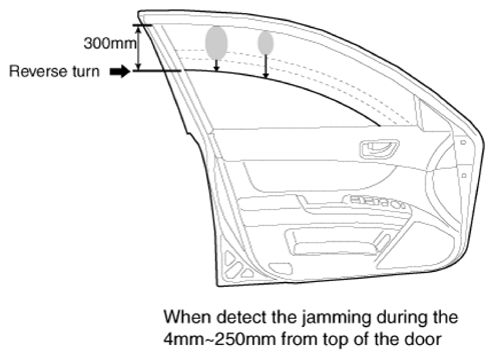

- When jamming is detected during the 4mm - 250mm from top of the door.
→ Window is reversed until 300mm from top of the door.

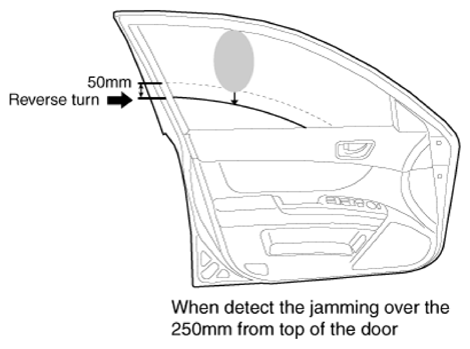

- When jamming is detected over the 250mm from top of the door.
→ Window is reversed until 20mm from jamming position.

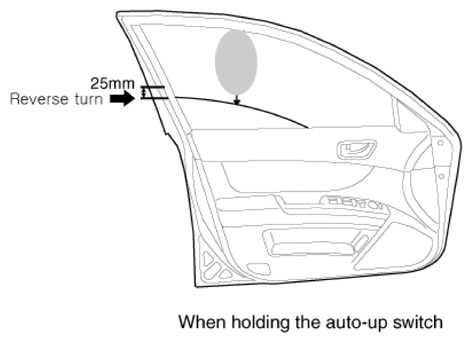

- Length of window reversing (holding the auto-up switch)
- When jamming is detected during holding the auto-up switch.
→ Window is reversed until 25mm from jamming position.
- Auto-up function is not available during the 5 seconds from above condition.
→ When holding the auto-up switch, window is operated as a manual-up function. (Safety function is not activated.)
- When holding the auto-up switch after 5 seconds from above condition.
→ Window is reversed until 25mm from jamming position.
- Safety function is not available
Safety function is not available during the 4mm from top of the door.
