Inspection With Diagnostic Tools
- Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat.
- Start the engine (IGN ON) and power on the diagnostic device.

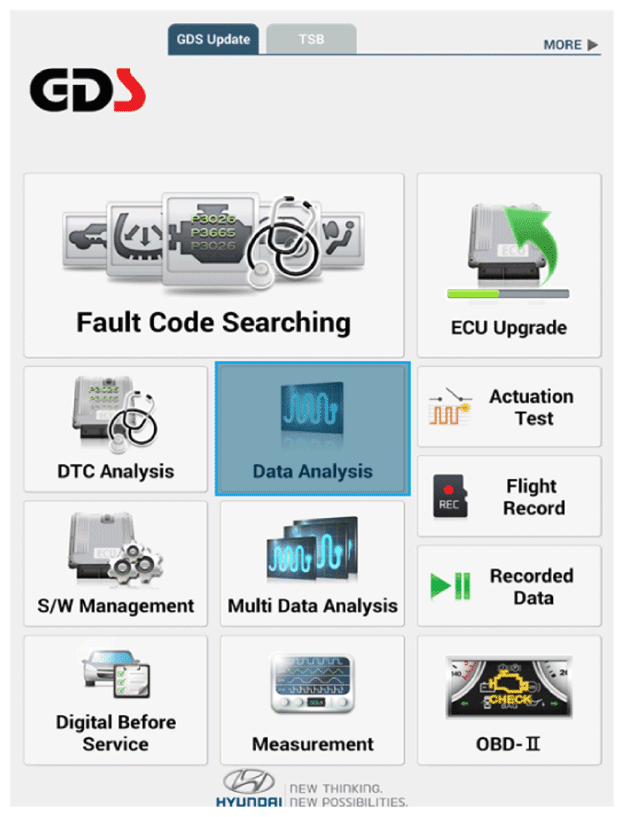

- Select the "Data Analysis" and "Car model".
- You can see the situation of each switch on scanner after connecting the "current data" process.
Display Description FL Toggle SW ON: Push button is ON in the driver door handle. FR Toggle SW ON: Push button is ON in the assist door handle. Trunk open SW ON: Trunk button is ON. Gear P Position ON: Shift lever is P position. IGN 1 ON: IGN switch is IG position. ACC ON: IGN switch is ACC position. Brake SW ON: Brake switch is ON.
