NFC Key Card Registration With Diagnostic Tools

  1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.
  2. Select the "S/W Management" and "NFC Key Card Registration Mode Activation".

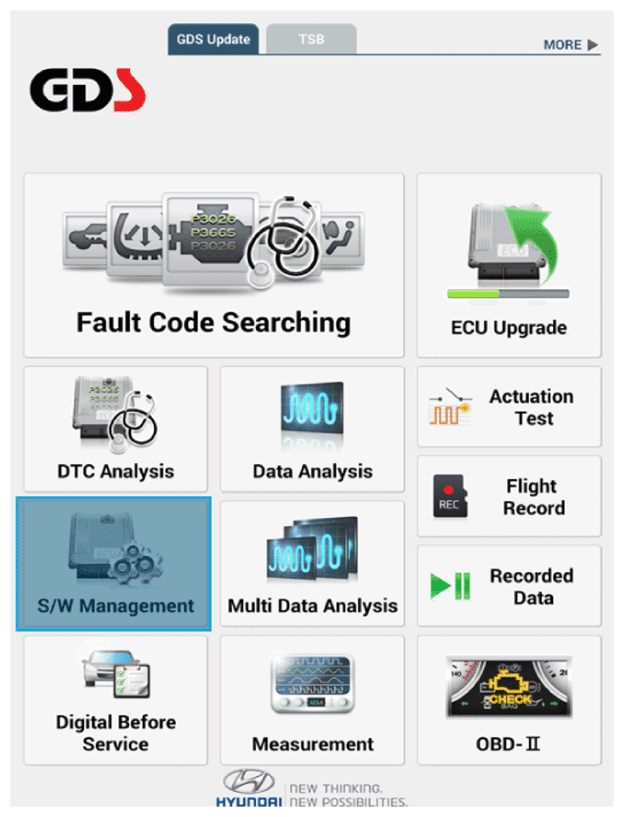

    G16548589Courtesy of HYUNDAI MOTOR AMERICA

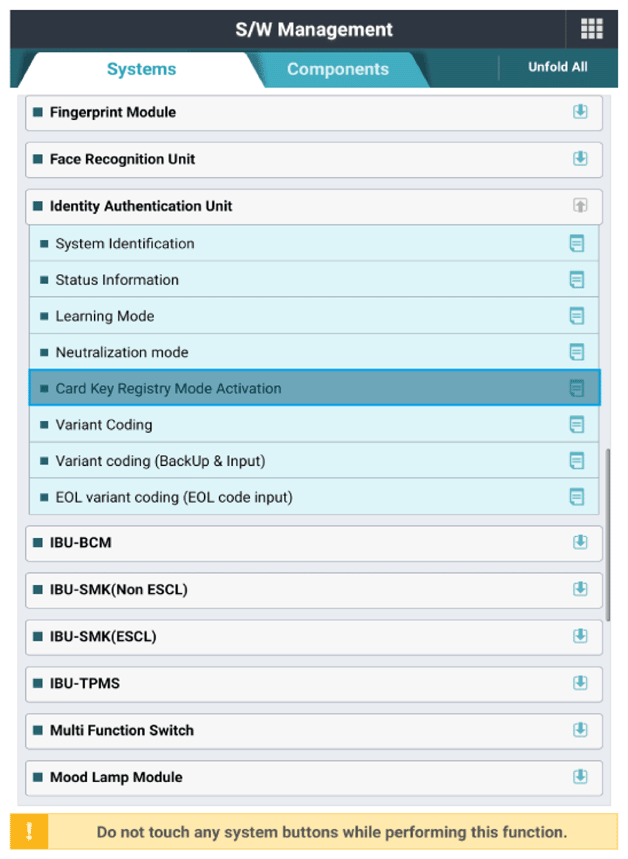

    G16548590Courtesy of HYUNDAI MOTOR AMERICA
  3. Enter the PIN code and VIN in order.

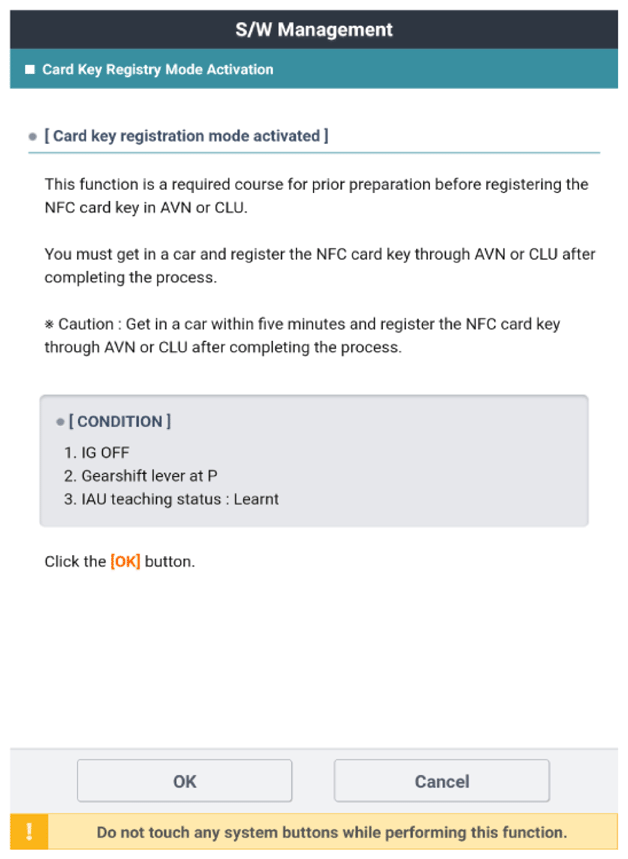

    G16548591Courtesy of HYUNDAI MOTOR AMERICA

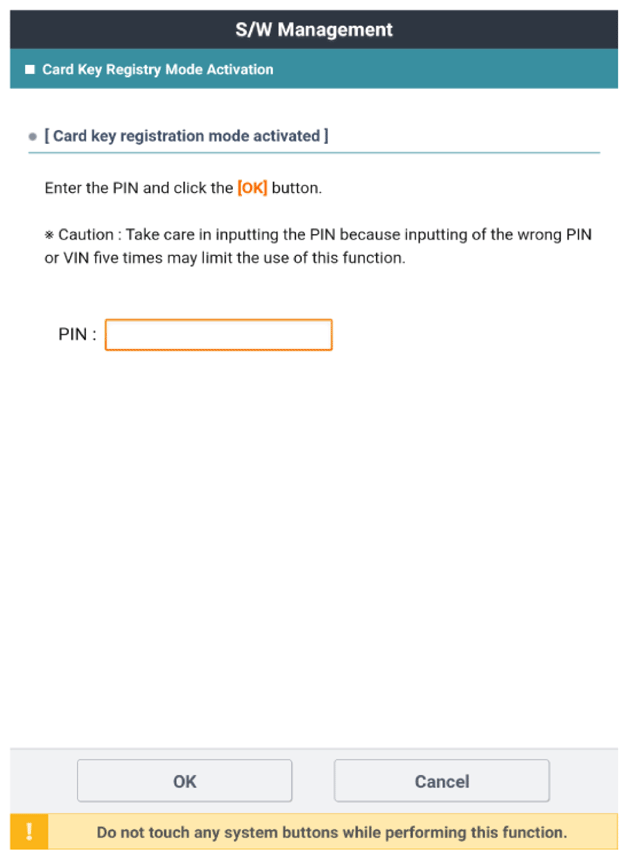

    G16548592Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If you input invalid passwords over 5 times, key card registration is prevented for 1 hour.
