CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.
  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to "Final DTC Checking"  procedure.

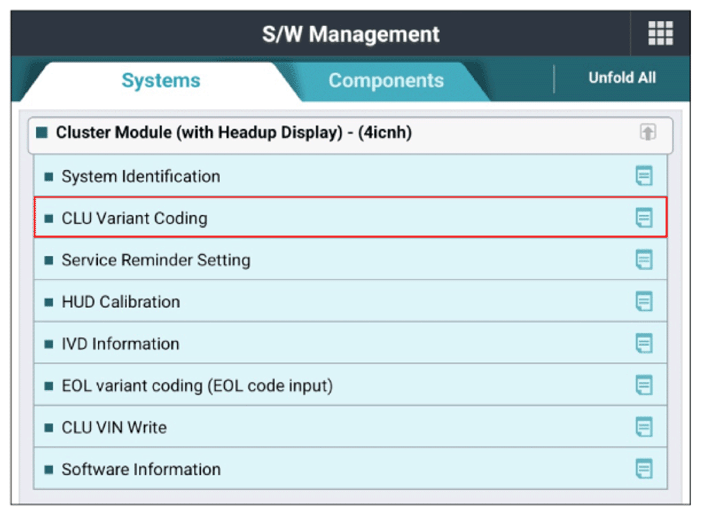

    G16623075Courtesy of HYUNDAI MOTOR AMERICA

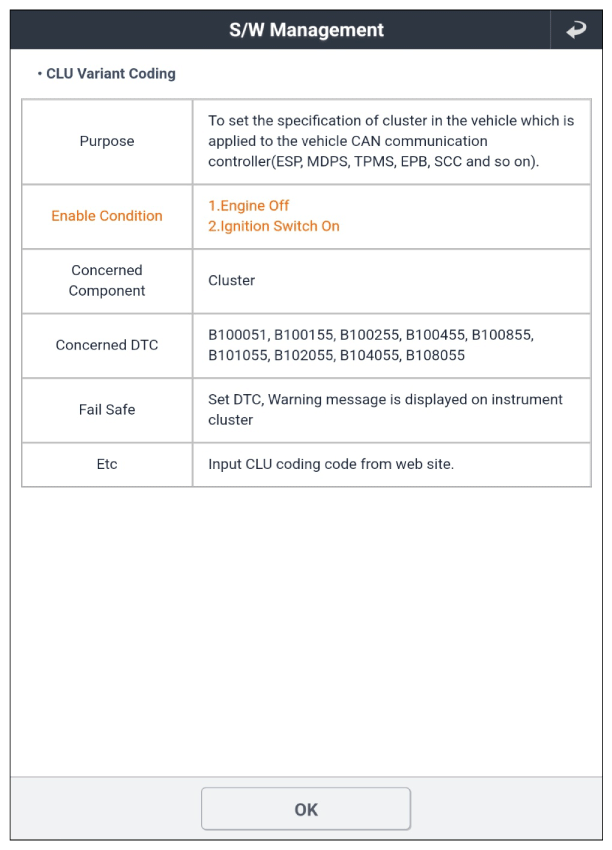

    G16623076Courtesy of HYUNDAI MOTOR AMERICA
    G16623077Courtesy of HYUNDAI MOTOR AMERICA

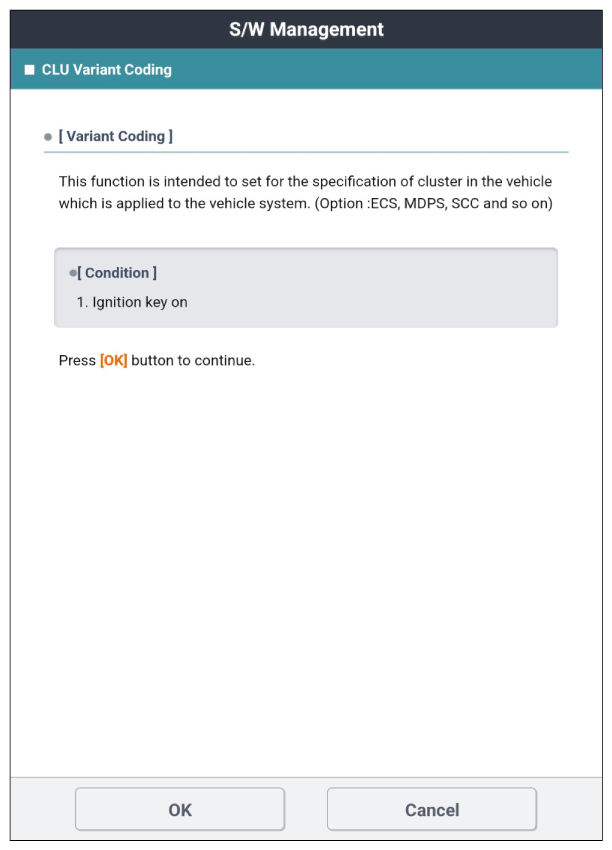

    G16623078Courtesy of HYUNDAI MOTOR AMERICA

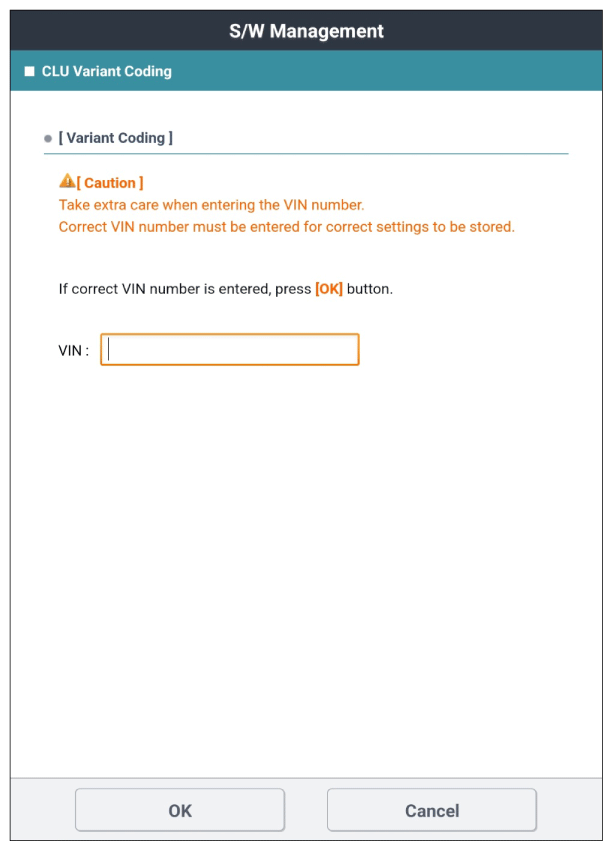

    G16623079Courtesy of HYUNDAI MOTOR AMERICA

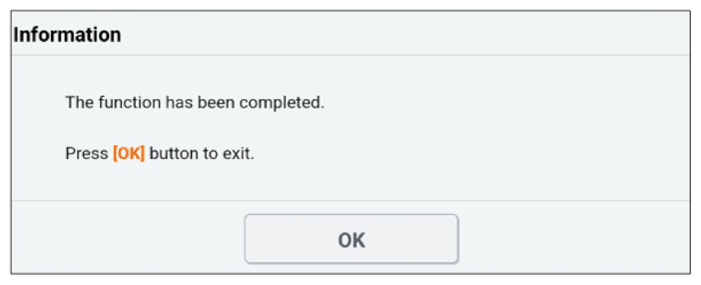

    G16623080Courtesy of HYUNDAI MOTOR AMERICA
