CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.
  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"Final DTC Checking"  procedure.

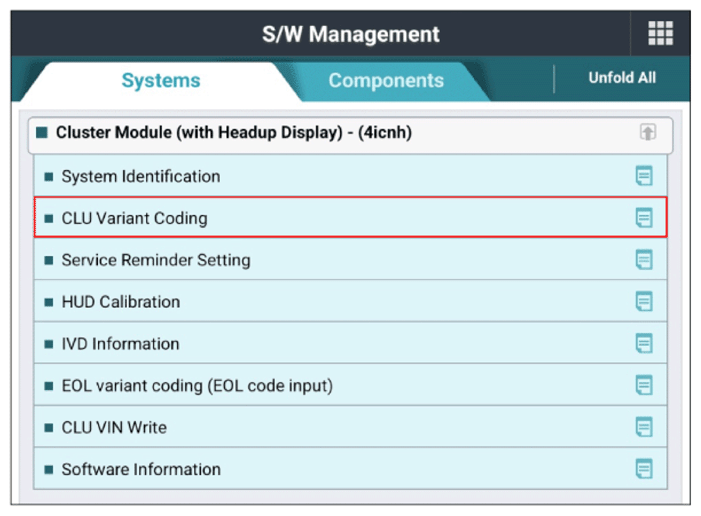

    G16623061Courtesy of HYUNDAI MOTOR AMERICA
    G16623062Courtesy of HYUNDAI MOTOR AMERICA

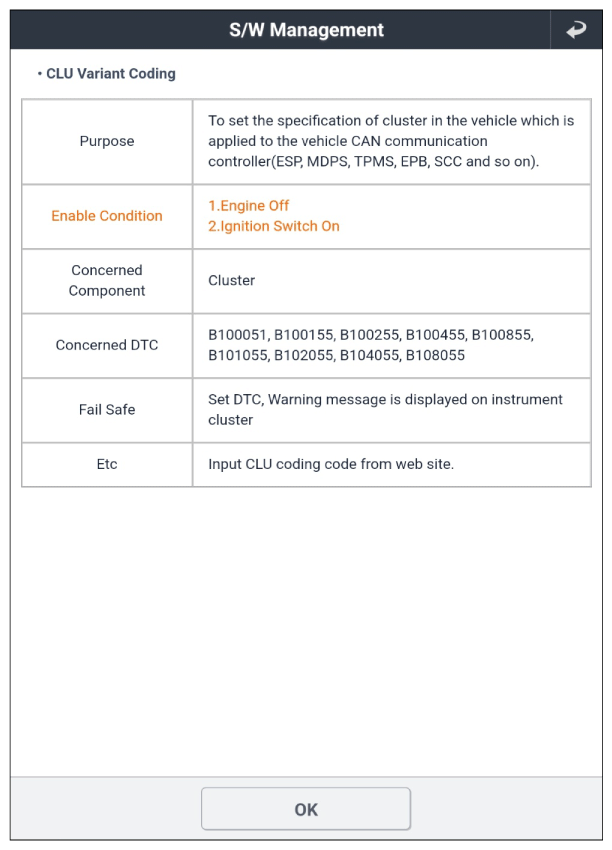

    G16623063Courtesy of HYUNDAI MOTOR AMERICA

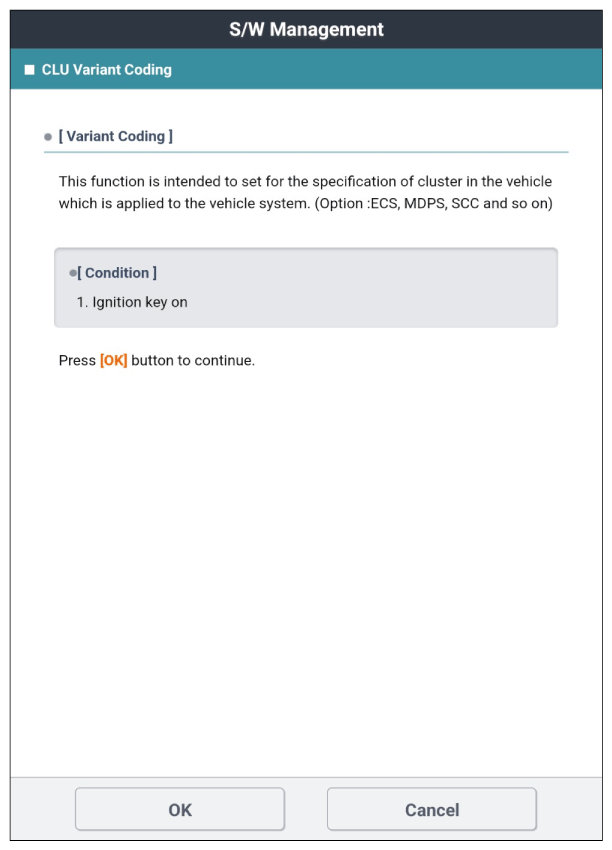

    G16623064Courtesy of HYUNDAI MOTOR AMERICA

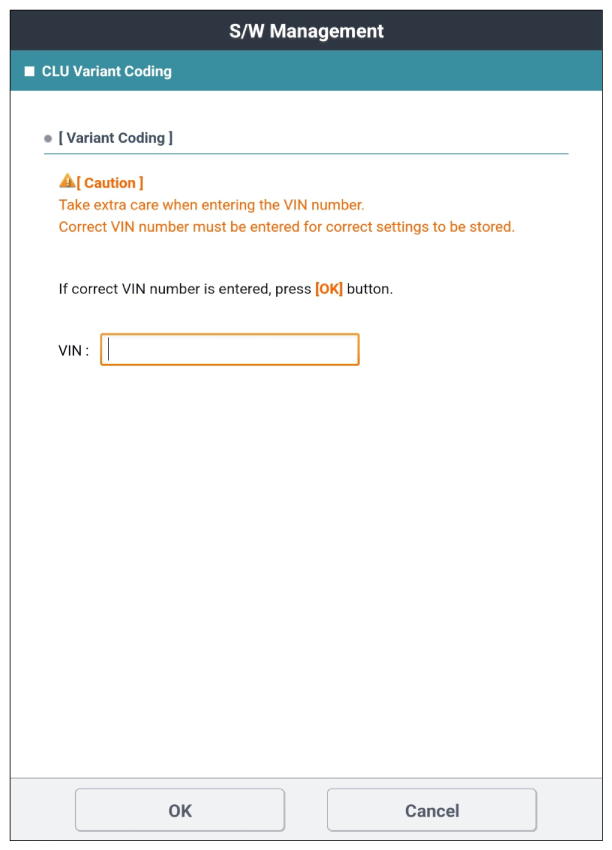

    G16623065Courtesy of HYUNDAI MOTOR AMERICA

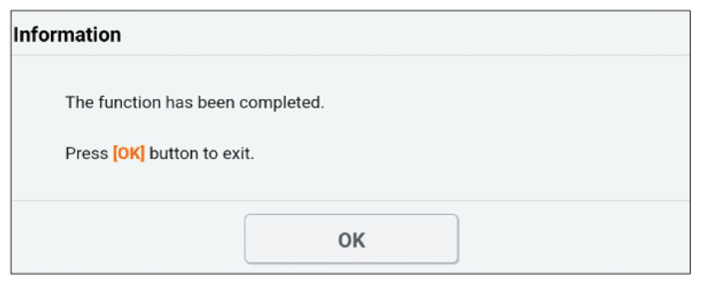

    G16623066Courtesy of HYUNDAI MOTOR AMERICA
