CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.
  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"Final DTC Checking"  procedure.

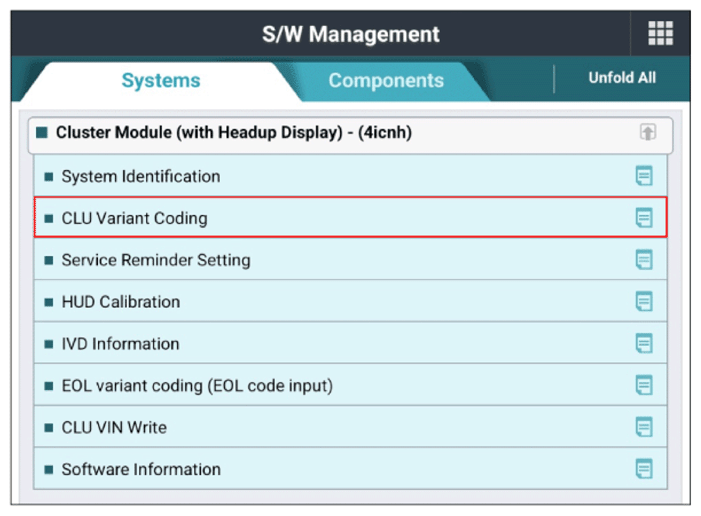

    G16623051Courtesy of HYUNDAI MOTOR AMERICA
    G16623052Courtesy of HYUNDAI MOTOR AMERICA

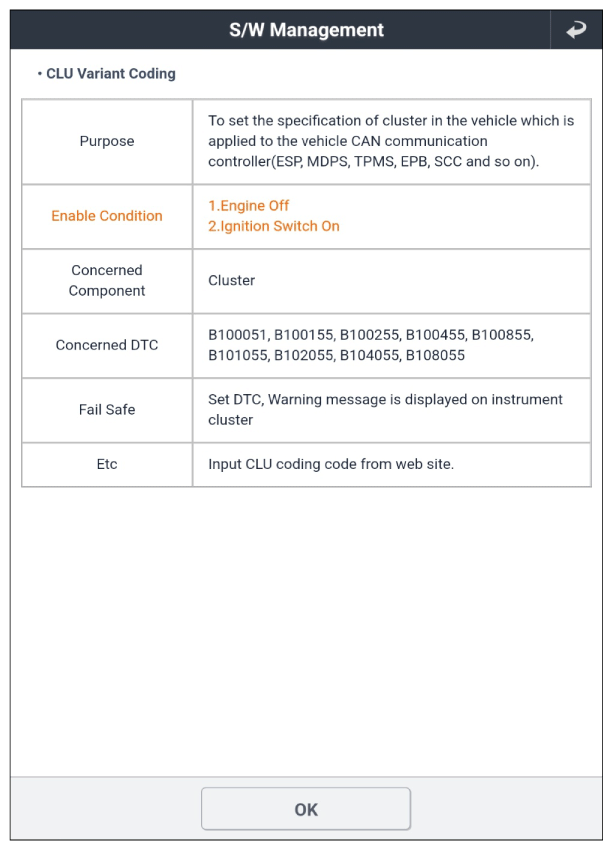

    G16623053Courtesy of HYUNDAI MOTOR AMERICA

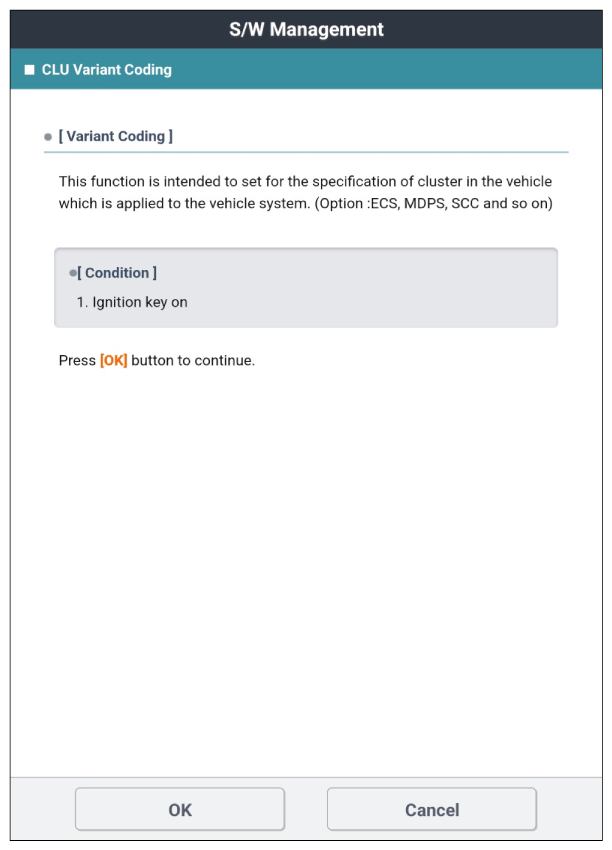

    G16623054Courtesy of HYUNDAI MOTOR AMERICA

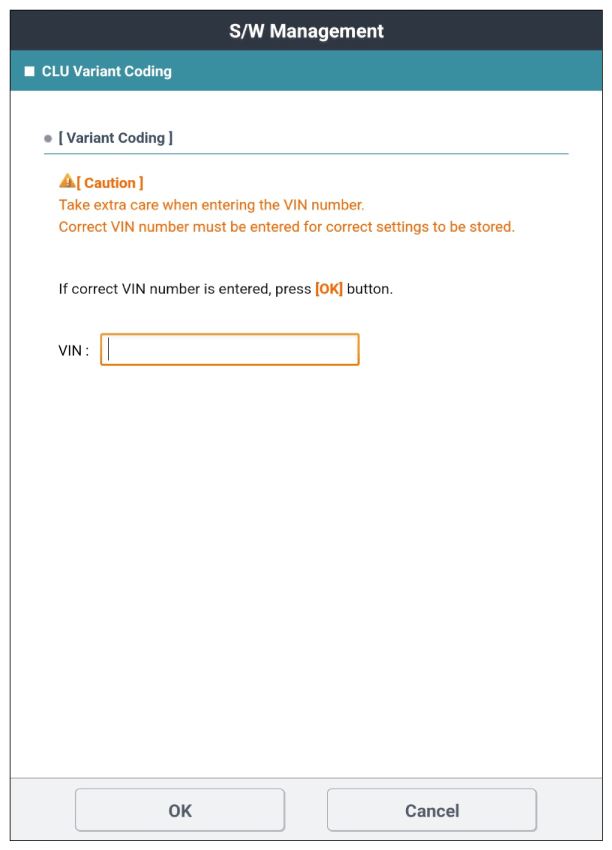

    G16623055Courtesy of HYUNDAI MOTOR AMERICA

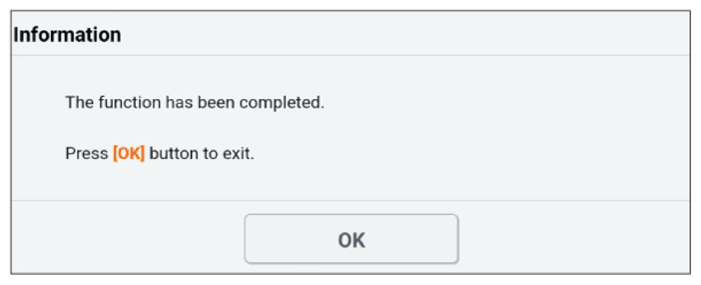

    G16623056Courtesy of HYUNDAI MOTOR AMERICA
