CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.

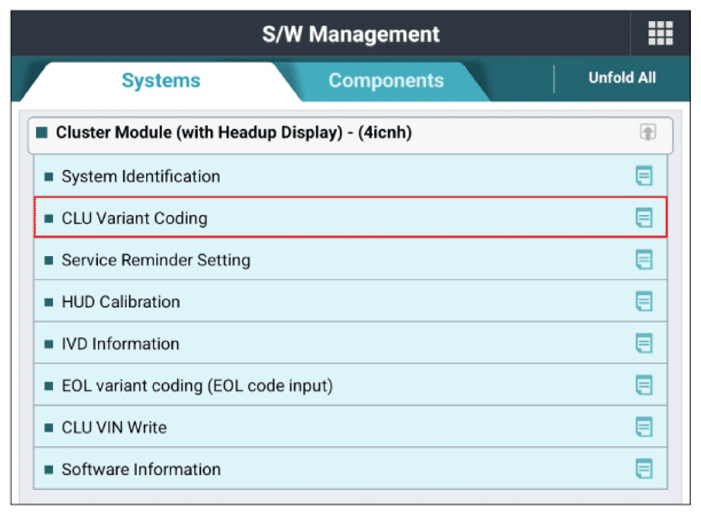

  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"Final DTC Checking"  procedure.
    G16623037Courtesy of HYUNDAI MOTOR AMERICA
    G16623038Courtesy of HYUNDAI MOTOR AMERICA

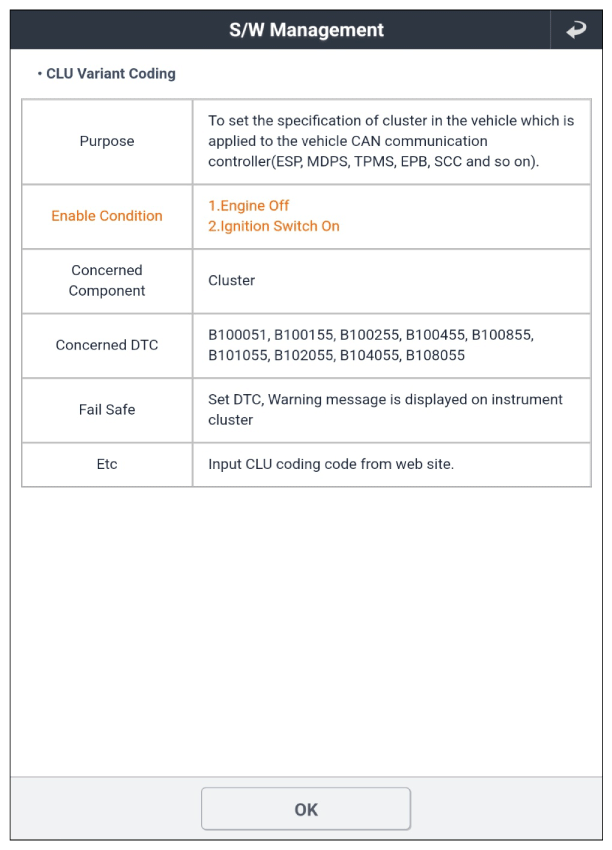

    G16623039Courtesy of HYUNDAI MOTOR AMERICA

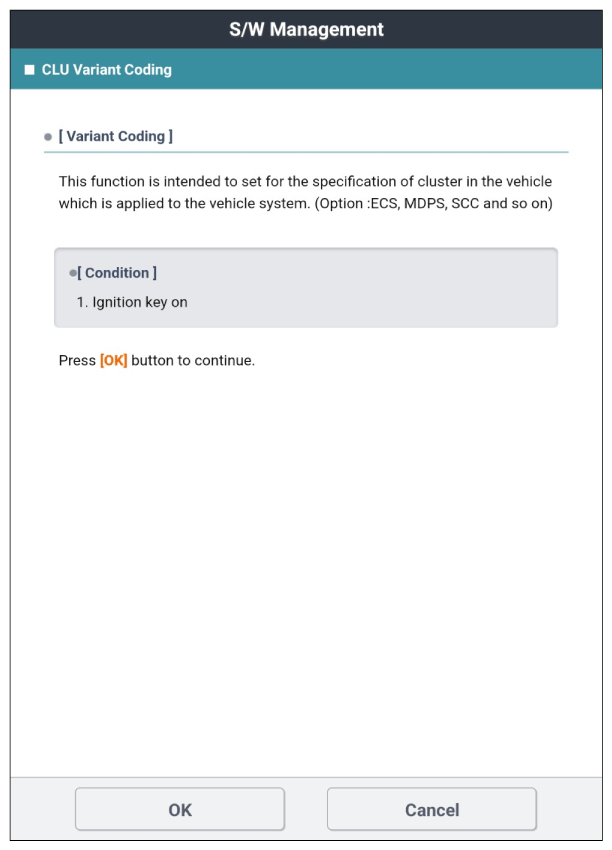

    G16623040Courtesy of HYUNDAI MOTOR AMERICA

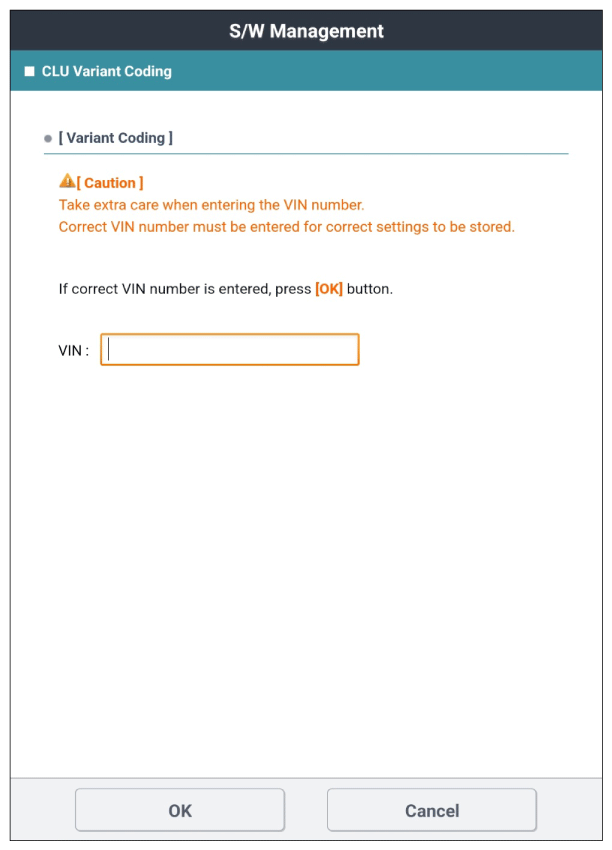

    G16623041Courtesy of HYUNDAI MOTOR AMERICA

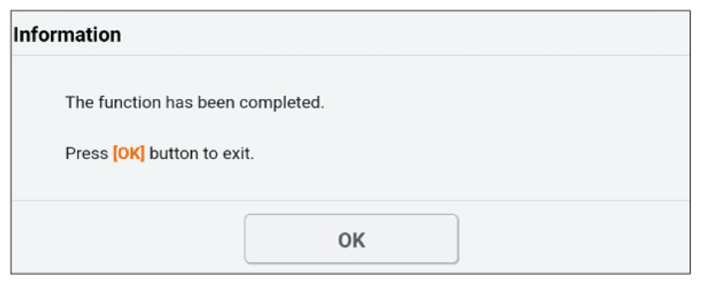

    G16623042Courtesy of HYUNDAI MOTOR AMERICA
