CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.
  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"Final DTC Checking"  procedure.

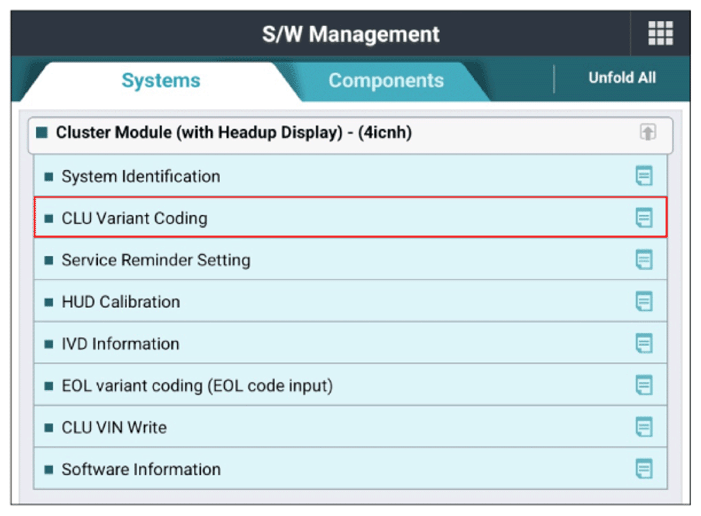

    G16623027Courtesy of HYUNDAI MOTOR AMERICA
    G16623028Courtesy of HYUNDAI MOTOR AMERICA

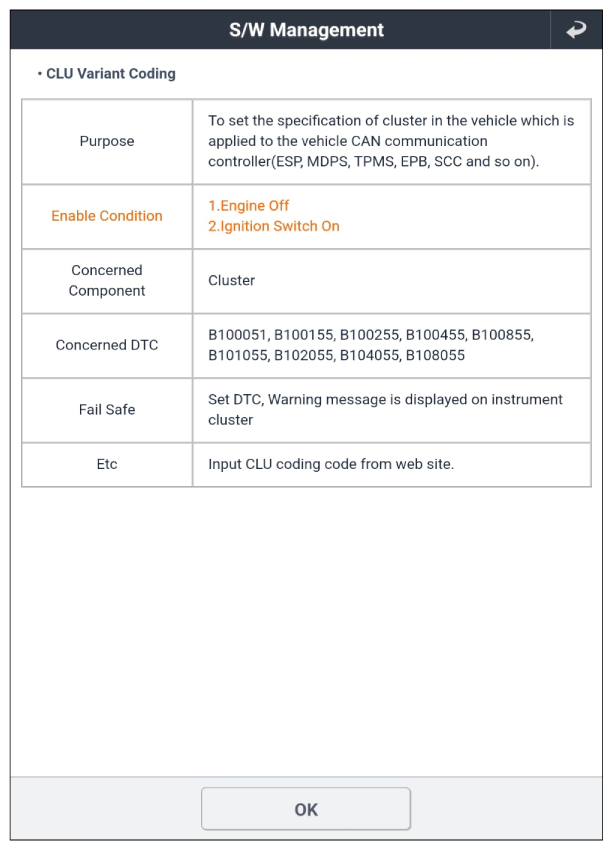

    G16623029Courtesy of HYUNDAI MOTOR AMERICA

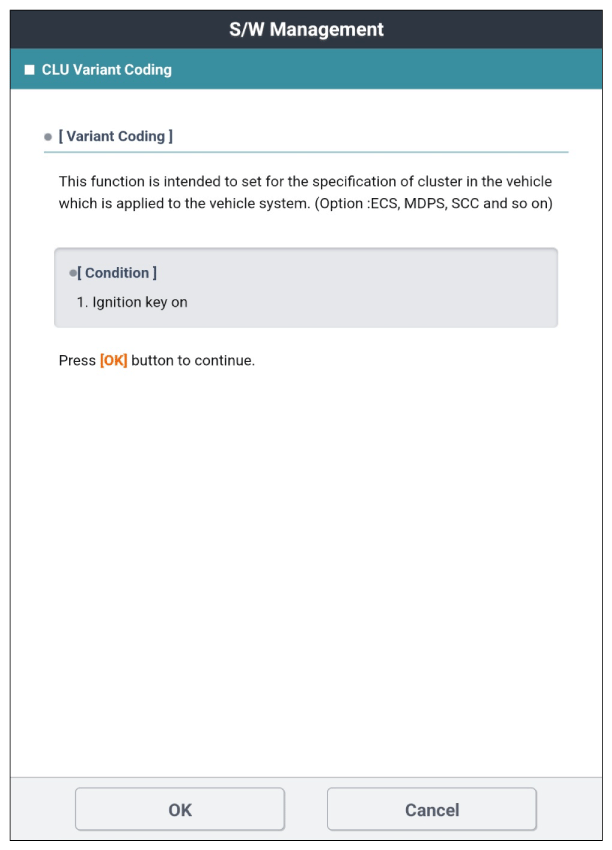

    G16623030Courtesy of HYUNDAI MOTOR AMERICA

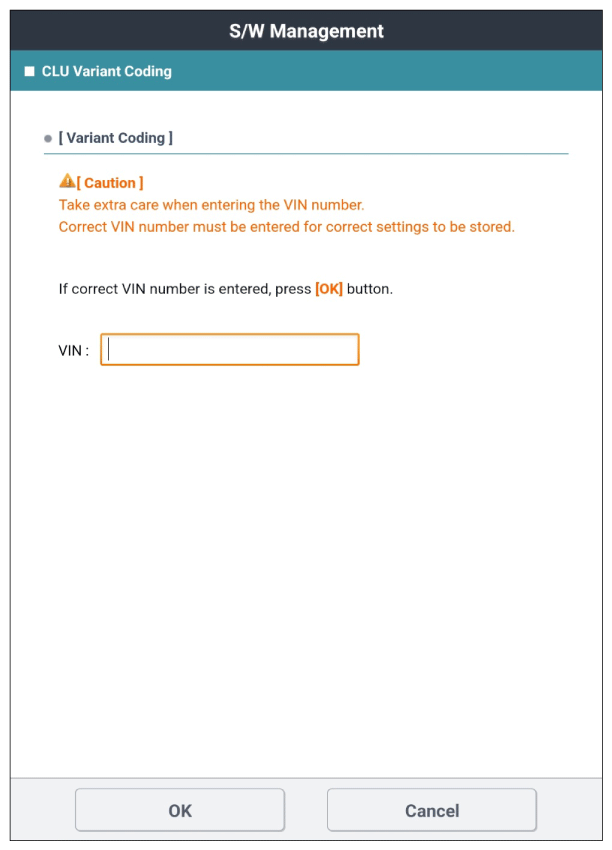

    G16623031Courtesy of HYUNDAI MOTOR AMERICA

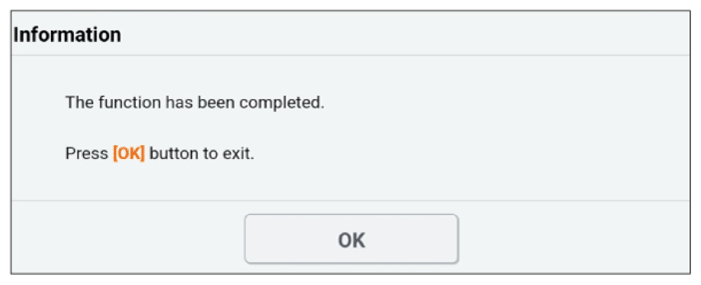

    G16623032Courtesy of HYUNDAI MOTOR AMERICA
