CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.

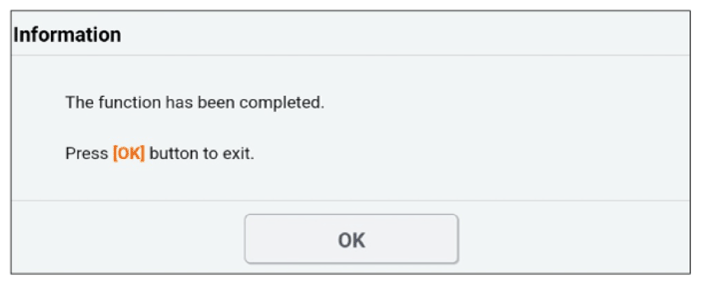

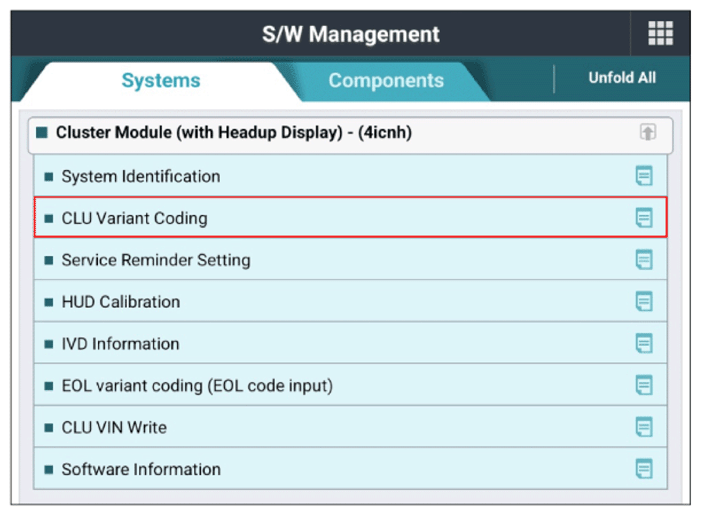

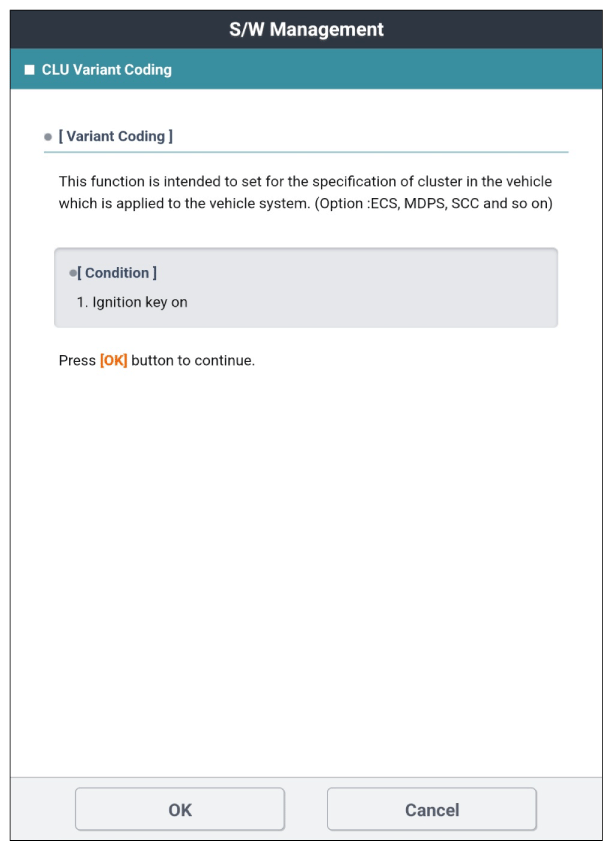

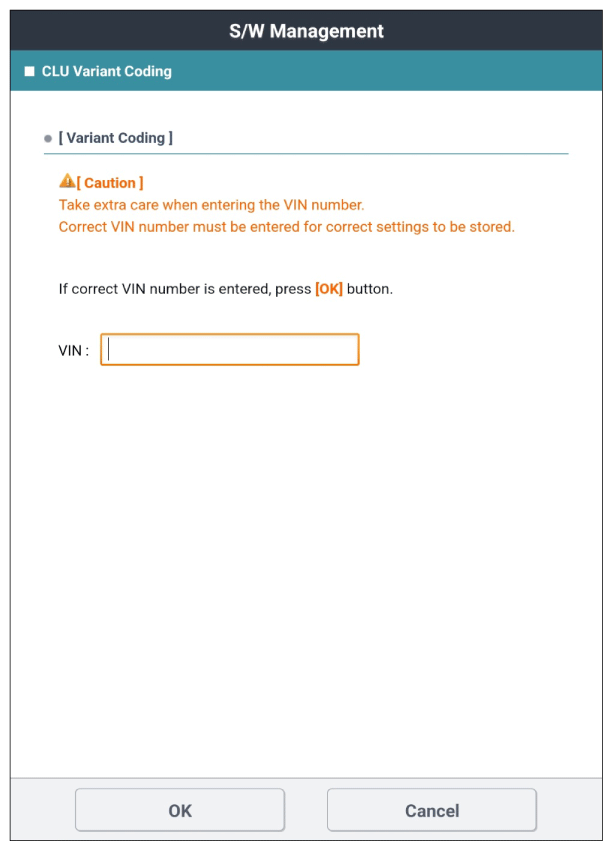

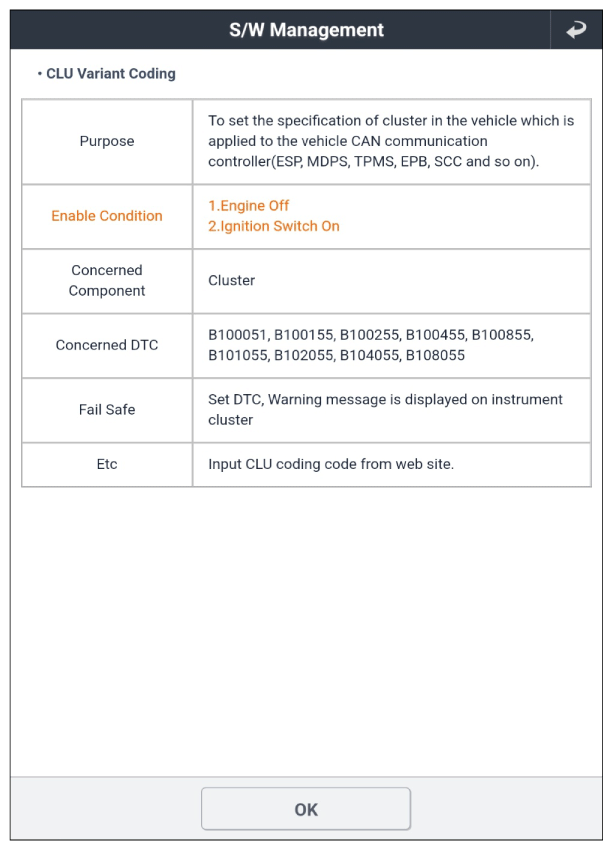

  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to "Final DTC Checking"  procedure.
    G16623013Courtesy of HYUNDAI MOTOR AMERICA
    G16623014Courtesy of HYUNDAI MOTOR AMERICA
    G16623015Courtesy of HYUNDAI MOTOR AMERICA
    G16623016Courtesy of HYUNDAI MOTOR AMERICA
    G16623017Courtesy of HYUNDAI MOTOR AMERICA
    G16623018Courtesy of HYUNDAI MOTOR AMERICA
