CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.

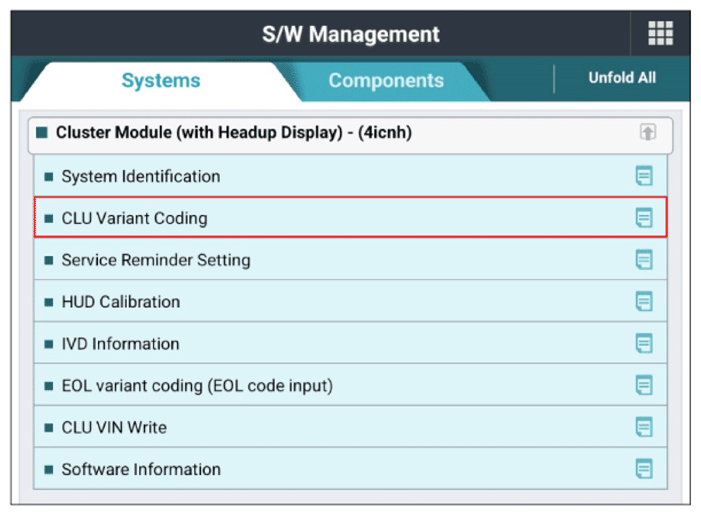

  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"Final DTC Checking"  procedure.
    G16622955Courtesy of HYUNDAI MOTOR AMERICA
    G16622956Courtesy of HYUNDAI MOTOR AMERICA

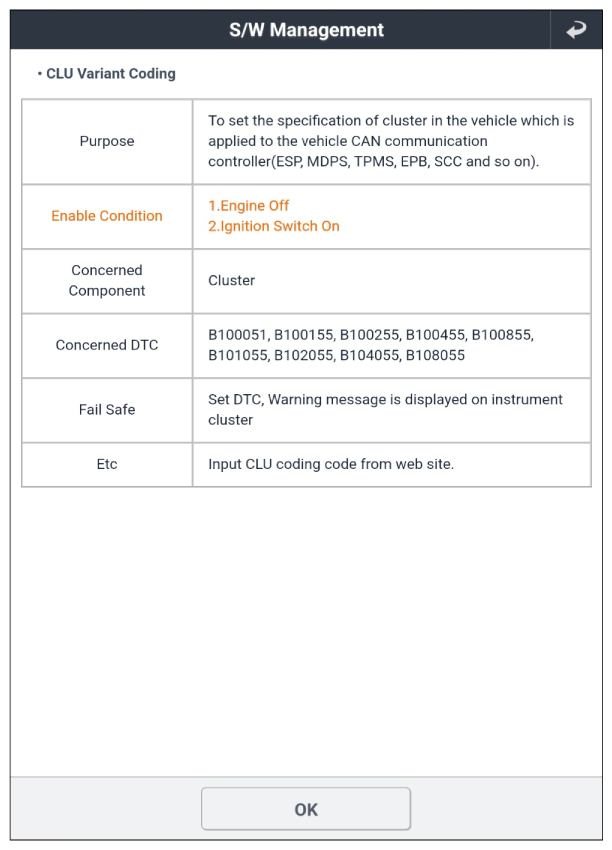

    G16622957Courtesy of HYUNDAI MOTOR AMERICA

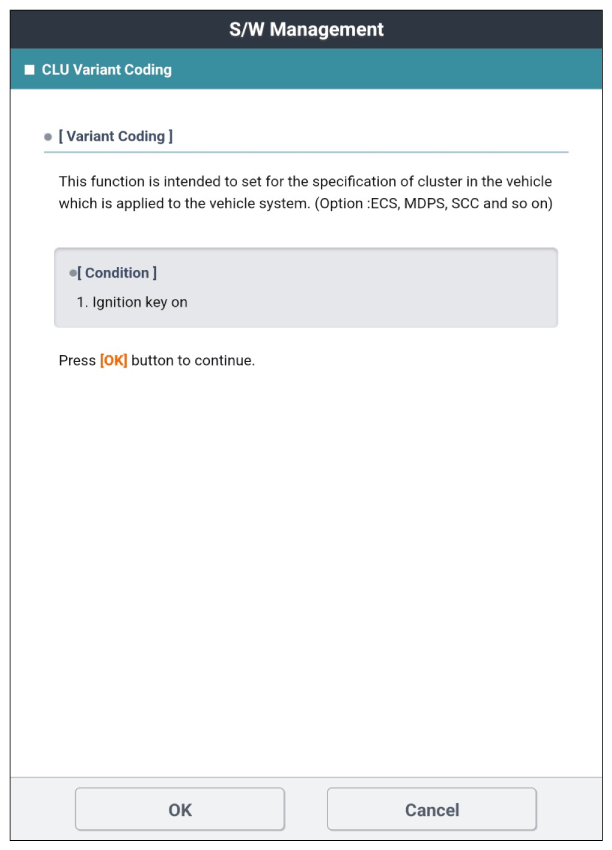

    G16622958Courtesy of HYUNDAI MOTOR AMERICA

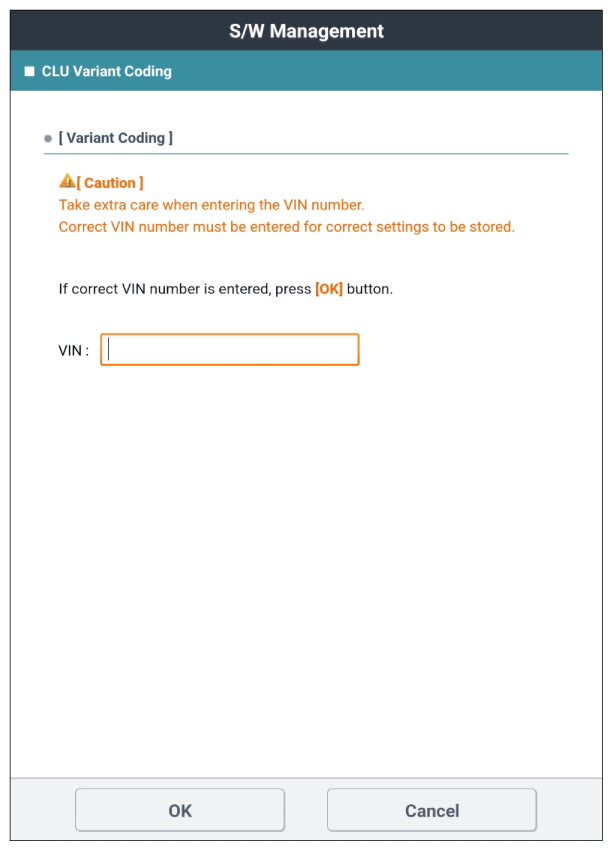

    G16622959Courtesy of HYUNDAI MOTOR AMERICA

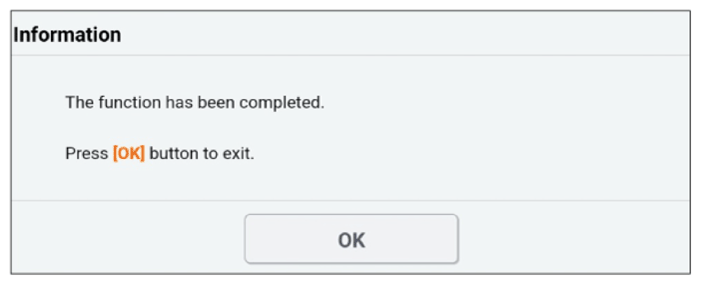

    G16622960Courtesy of HYUNDAI MOTOR AMERICA
