CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.

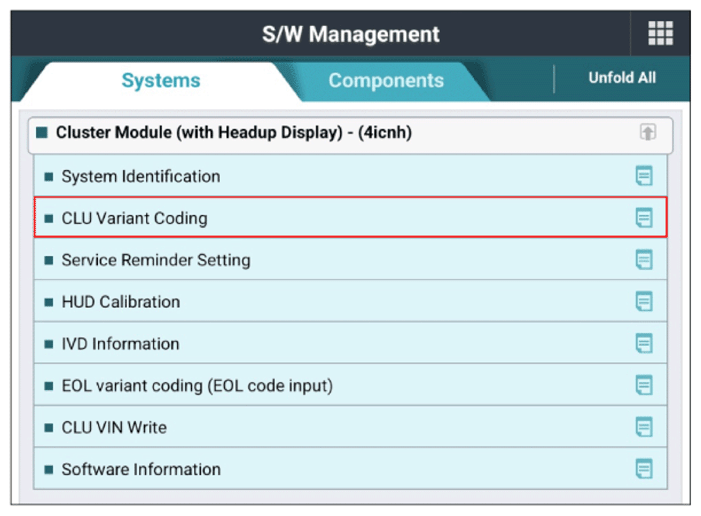

  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"Final DTC Checking"  procedure.
    G16622931Courtesy of HYUNDAI MOTOR AMERICA
    G16622932Courtesy of HYUNDAI MOTOR AMERICA

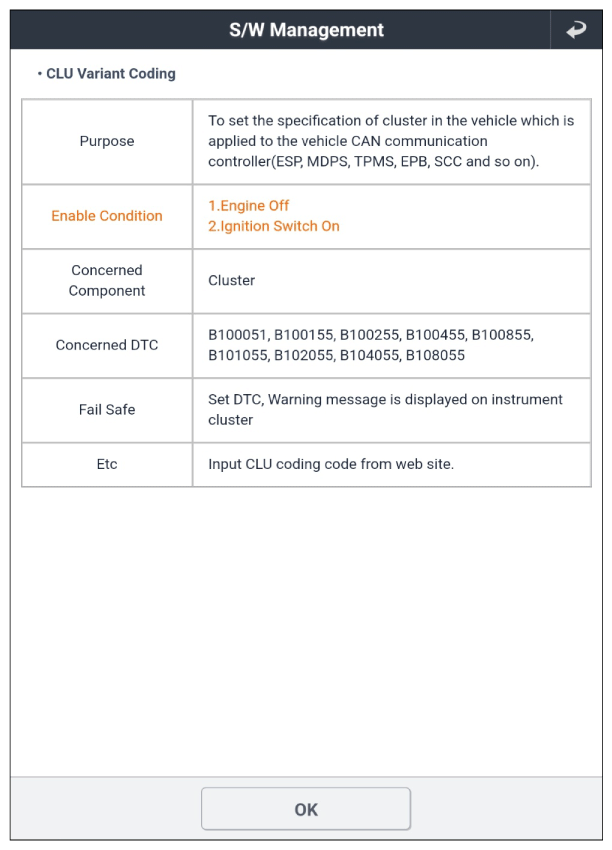

    G16622933Courtesy of HYUNDAI MOTOR AMERICA

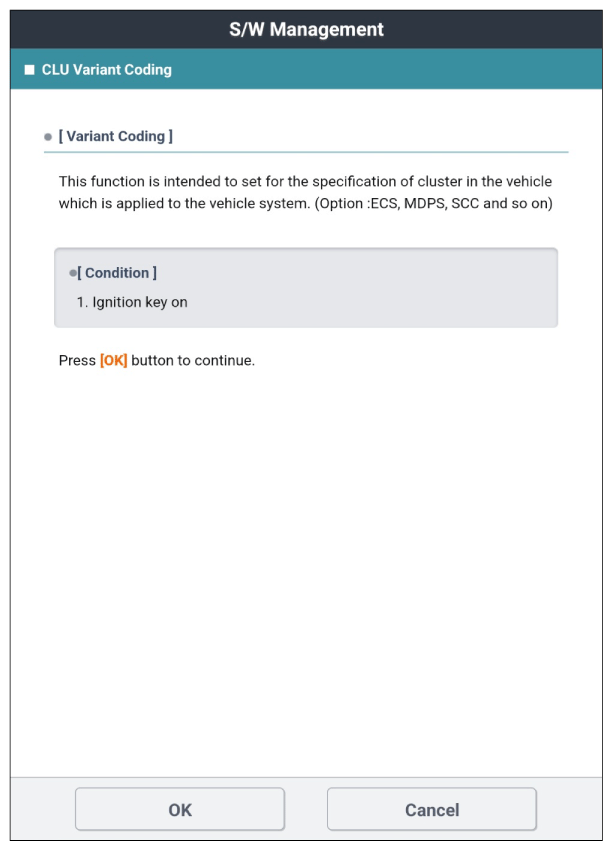

    G16622934Courtesy of HYUNDAI MOTOR AMERICA

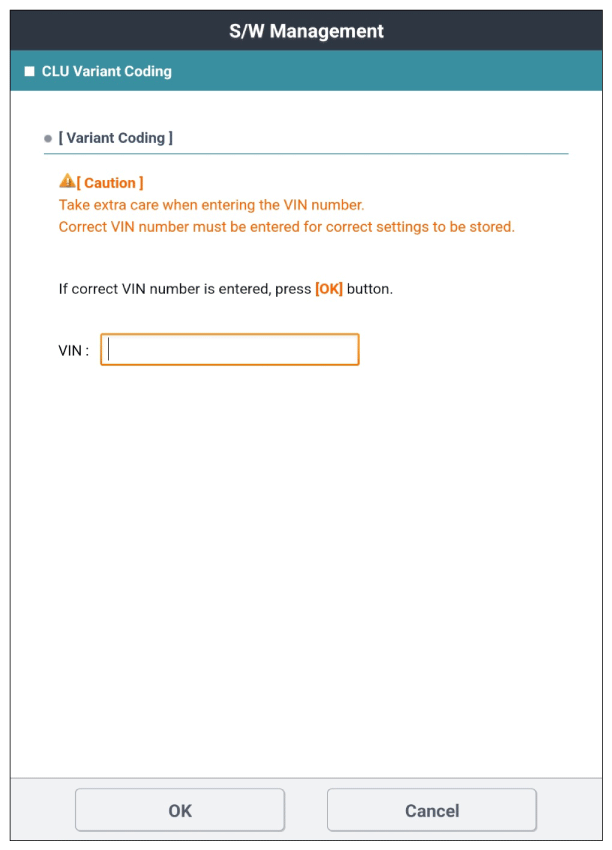

    G16622935Courtesy of HYUNDAI MOTOR AMERICA

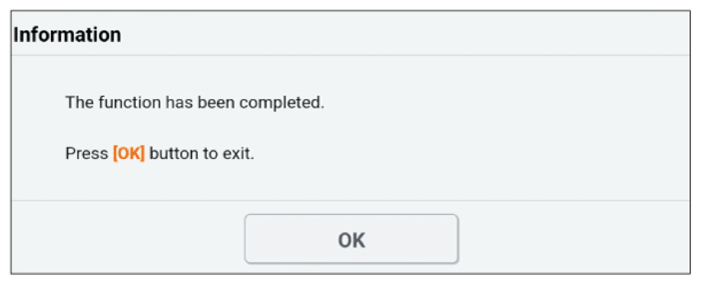

    G16622936Courtesy of HYUNDAI MOTOR AMERICA
