CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.

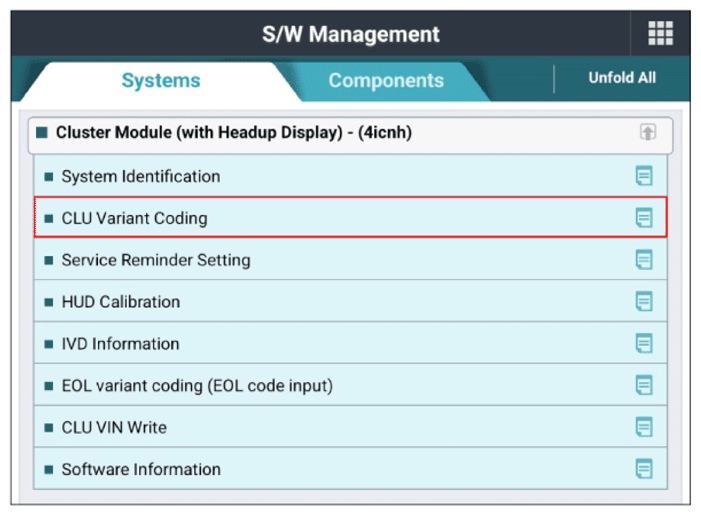

  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management". Go to"3. Final DTC Checking"  procedure.
    G16622813Courtesy of HYUNDAI MOTOR AMERICA
    G16622814Courtesy of HYUNDAI MOTOR AMERICA

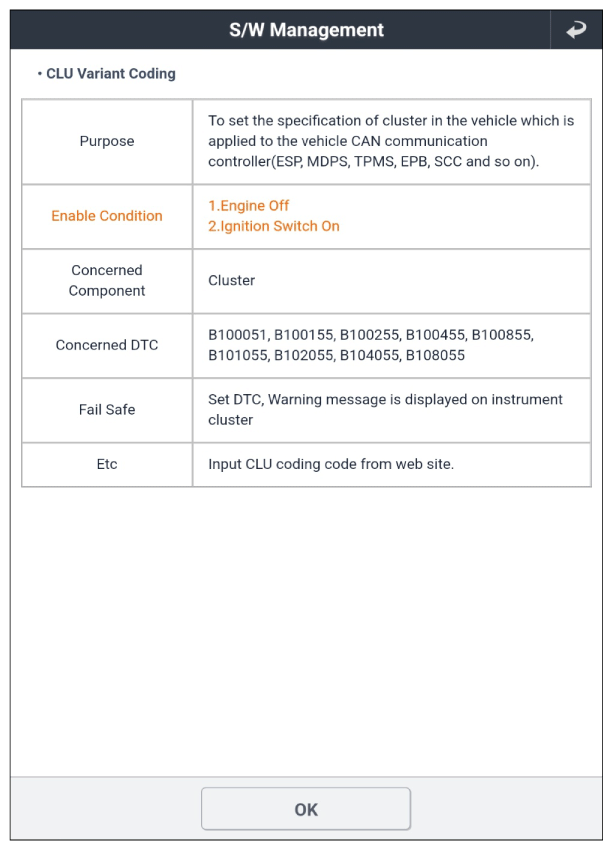

    G16622815Courtesy of HYUNDAI MOTOR AMERICA

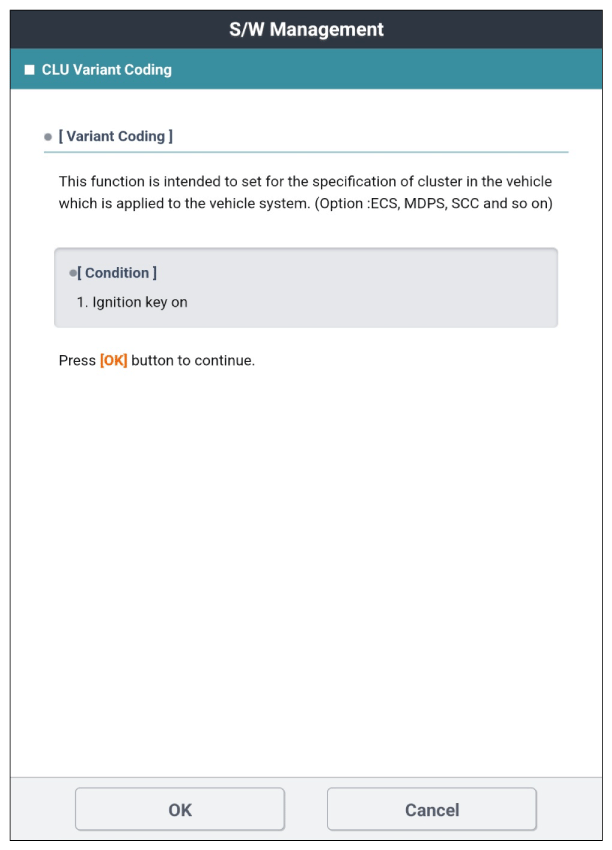

    G16622816Courtesy of HYUNDAI MOTOR AMERICA

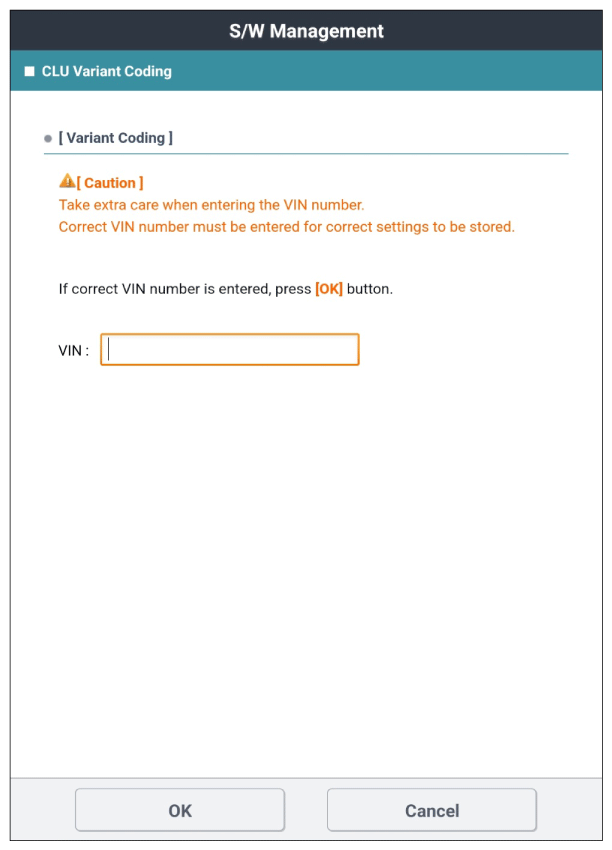

    G16622817Courtesy of HYUNDAI MOTOR AMERICA

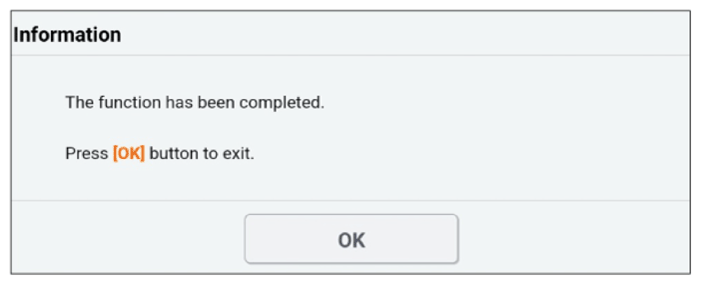

    G16622818Courtesy of HYUNDAI MOTOR AMERICA
