CLU Variant Coding

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector.

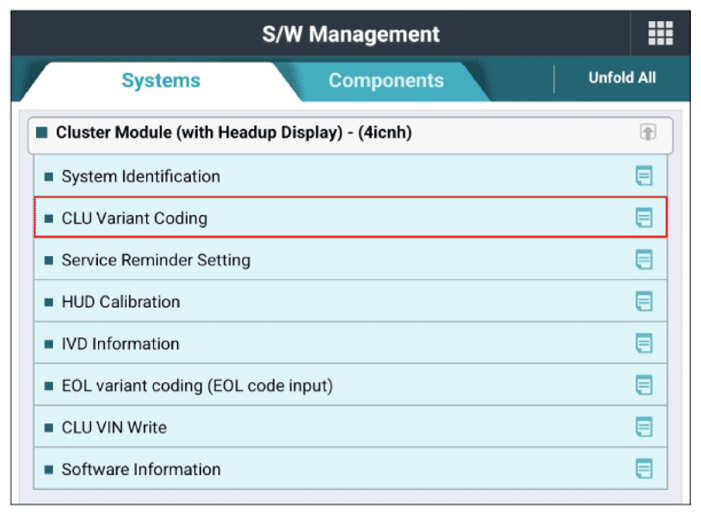

  2. Select "CLU Variant Coding" of instrument panel unit item in GDS "Vehicle S/W Management" Go to"Final DTC Checking"  procedure.
    G16622789Courtesy of HYUNDAI MOTOR AMERICA
    G16622790Courtesy of HYUNDAI MOTOR AMERICA

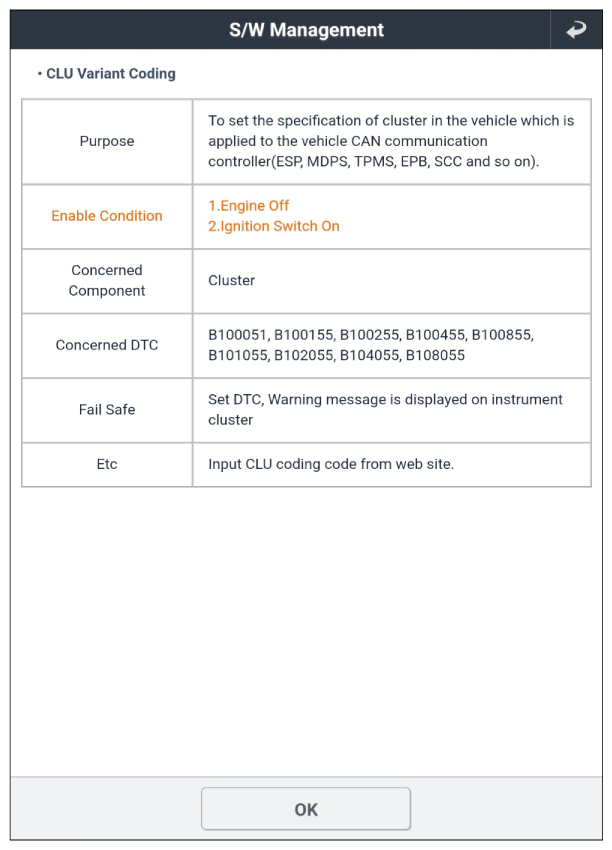

    G16622791Courtesy of HYUNDAI MOTOR AMERICA

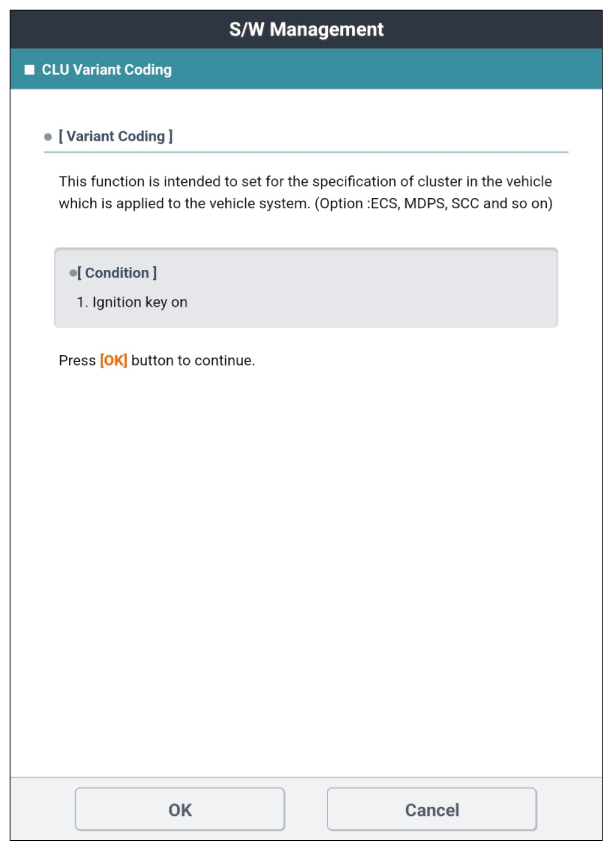

    G16622792Courtesy of HYUNDAI MOTOR AMERICA

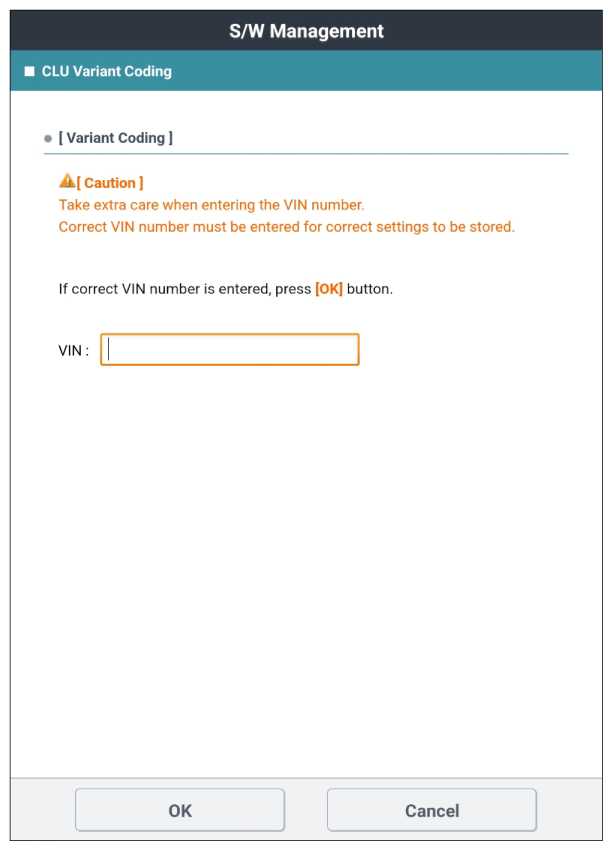

    G16622793Courtesy of HYUNDAI MOTOR AMERICA

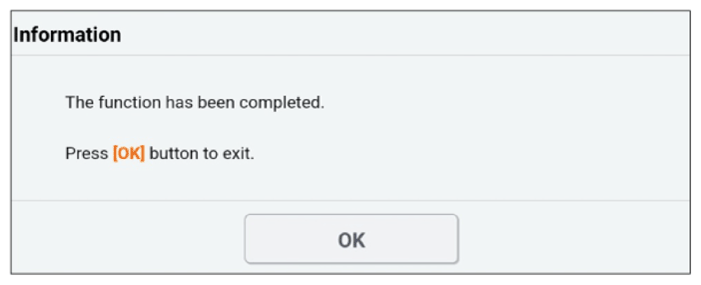

    G16622794Courtesy of HYUNDAI MOTOR AMERICA
