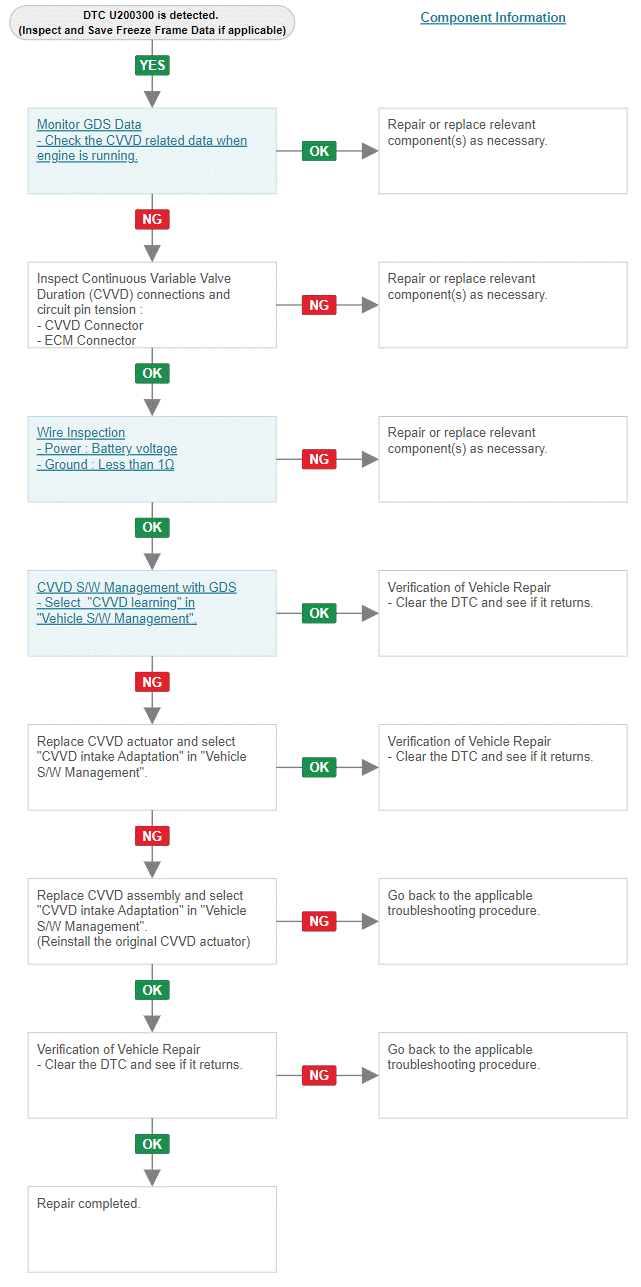

Diagnostic Flowchart

G16612085Courtesy of HYUNDAI MOTOR AMERICA
NOTE: - After removing the Head Cover, CVVD assembly and CVVD Actuator, Select "CVVD learning" in "Vehicle S/W Management".

- "CVVD learning" will be necessary when the worker remove the battery or CVVD connector while the engine is running.
