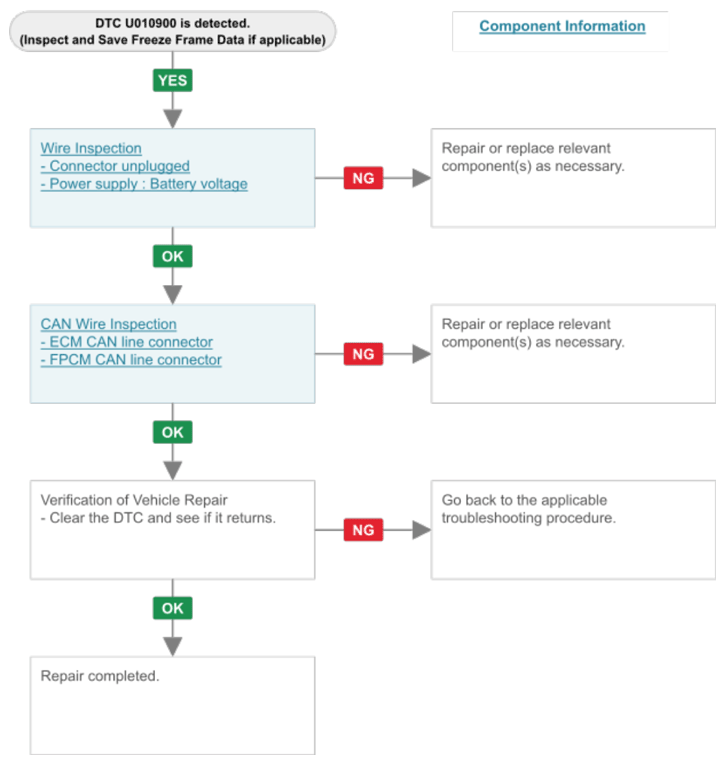

Home >> Hyundai >> 2025 >> Kona Limited, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.6 (2 Of 2) >> DTC U0109-00: Lost Communication With Fuel Pump Control Module >> Troubleshooting >> Diagnostic Flowchart
