Home >> Hyundai >> 2025 >> Kona Limited, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.6 (2 Of 2) >> DTC P262B-00: Control Module Power Off Timer Performance >> Troubleshooting >> Diagnostic Flowchart

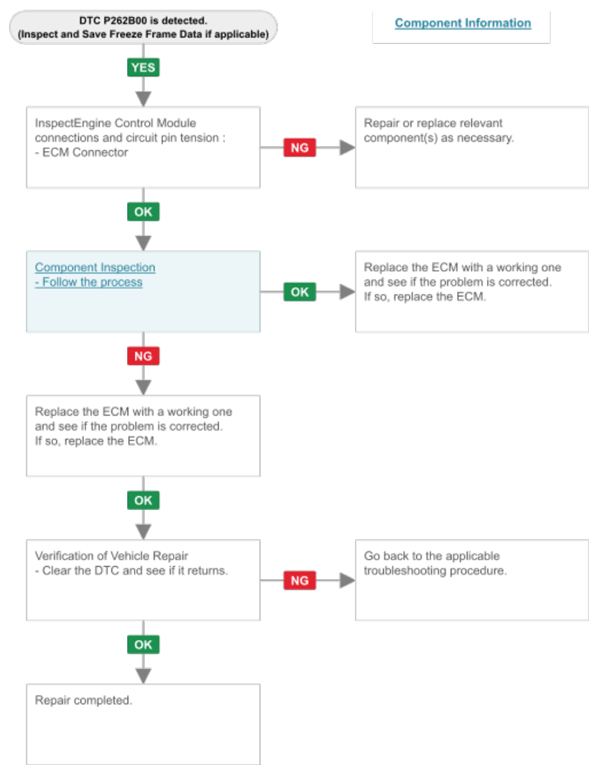

Diagnostic Flowchart

G16612043Courtesy of HYUNDAI MOTOR AMERICA
