Inspect CVVD Current Data

  1. Turn ignition switch OFF and connect GDS.
  2. Turn ignition switch ON.
  3. Warm up engine to normal operating temperature.
  4. Select the "Current Data" of the GDS and check the relevant items as follows:

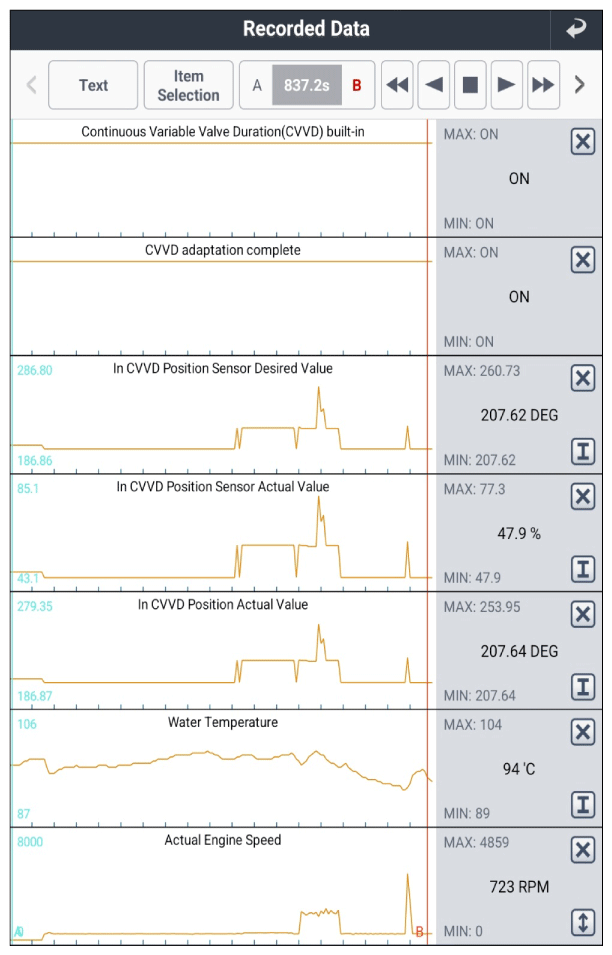

    Reference  : Current Data

    G16611907Courtesy of HYUNDAI MOTOR AMERICA
