FTPS GDS Data Inspection

  1. Turn ignition switch OFF and connect GDS.
  2. Turn ignition switch ON.
  3. Select relevant items in the "Current Data".
  4. Check the sensor data with the engine cold.

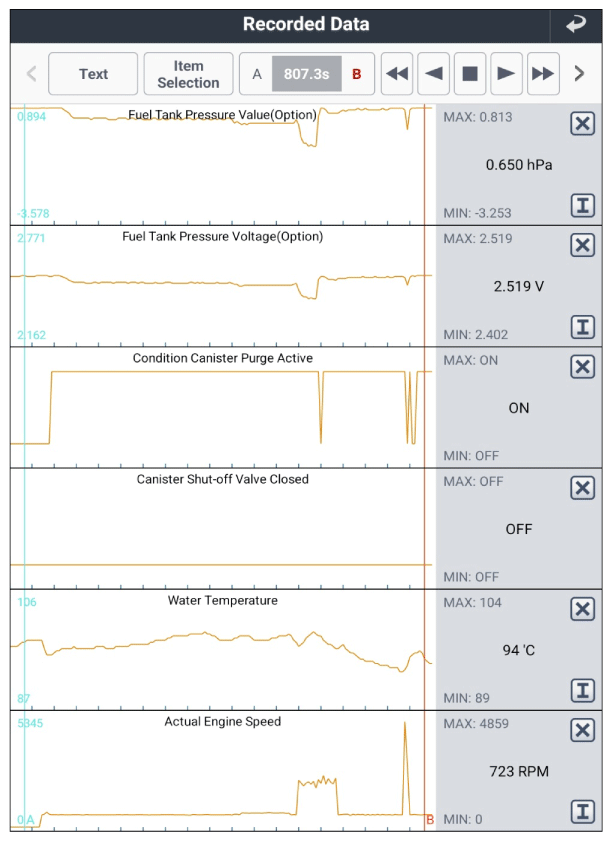

    Reference  : Current Data

    G16611867Courtesy of HYUNDAI MOTOR AMERICA
