Outside Mirror Assembly: Inspection: Notes
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery (-) terminal.
- Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

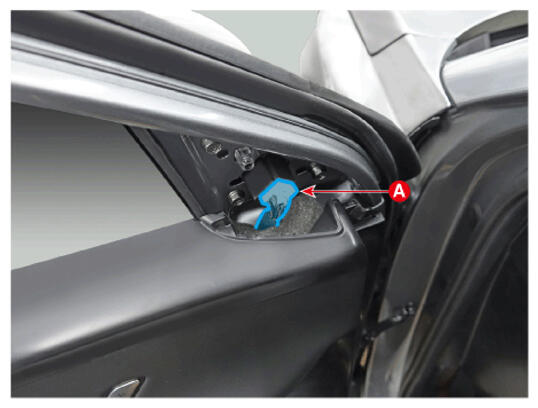

- Disconnect the power door mirror connector (A) from the harness.

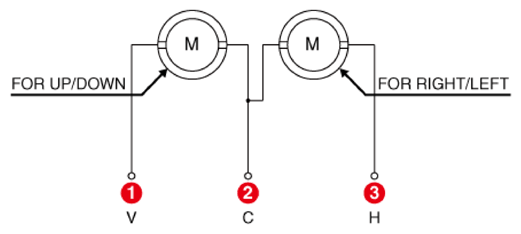

Apply battery voltage to each terminal as shown in the illustration and verify that the mirror operates properly.

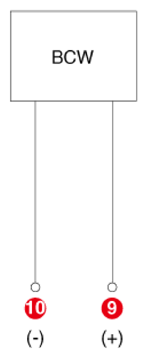

BCW

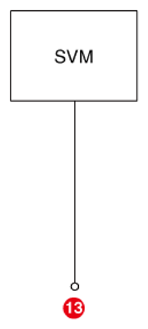

SVM

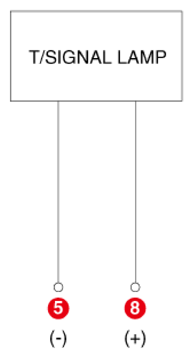

Turn Signal Lamp

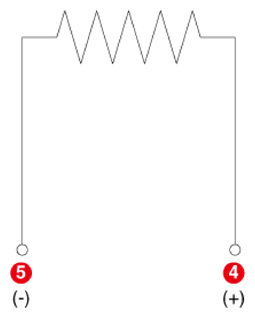

Heater

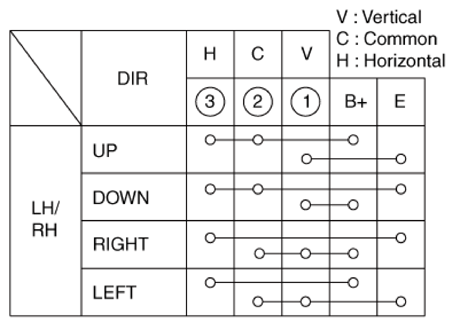

Actuator

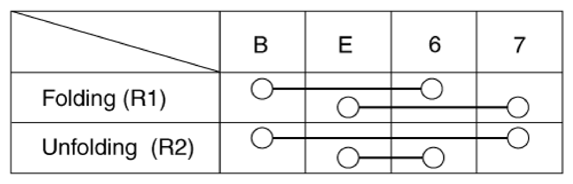

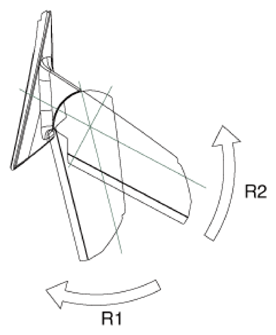

Mirror folding
