Repair Procedures: Adjustment

  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".

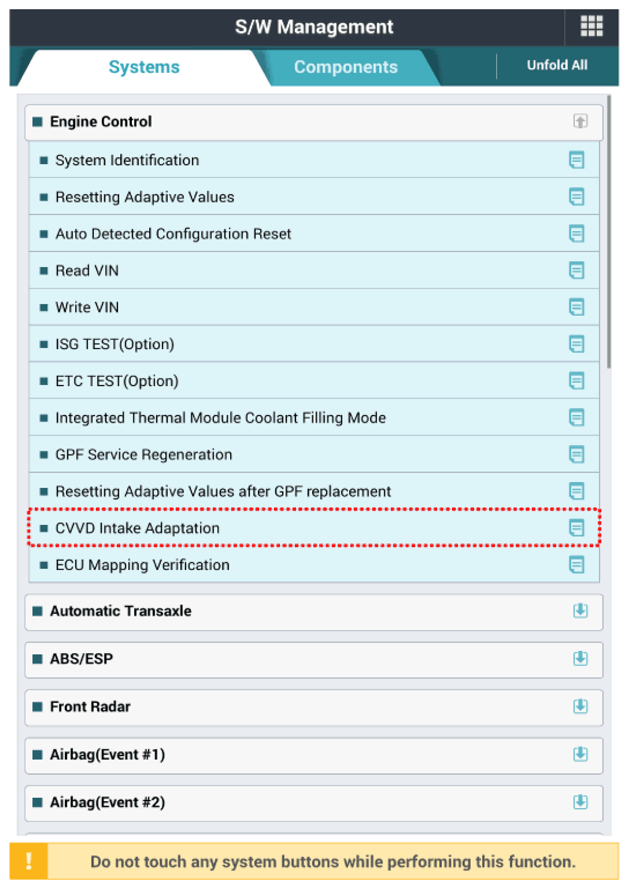

  5. Select "CVVD Intake Adaption".

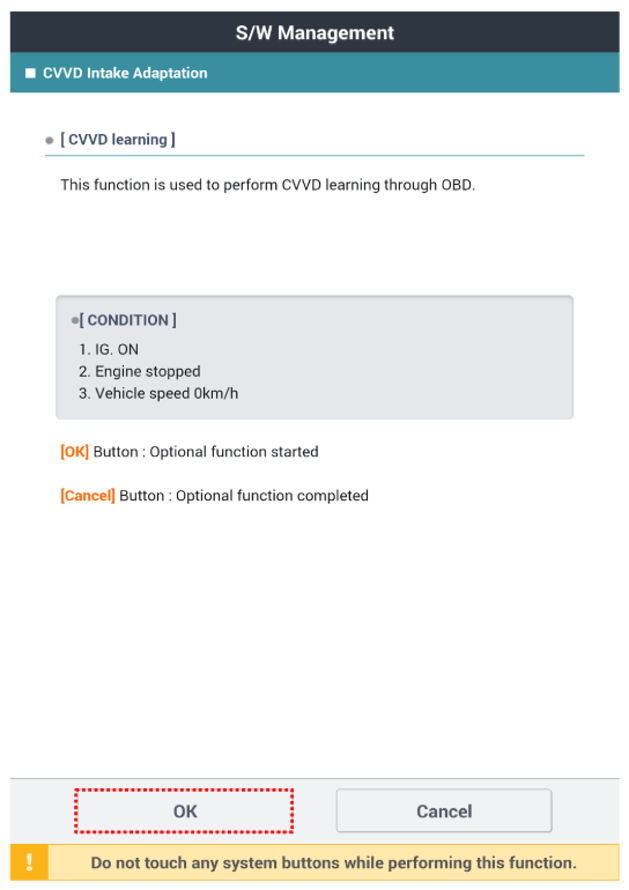

  6. Perform the "CVVD Learning" refer to the diagnostic tool.
G16687360Courtesy of HYUNDAI MOTOR AMERICA
G16687361Courtesy of HYUNDAI MOTOR AMERICA
G16687362Courtesy of HYUNDAI MOTOR AMERICA
