Sub Power Window Switch (Passenger)

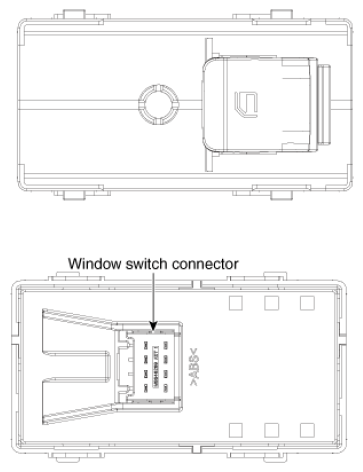

G16108929Courtesy of HYUNDAI MOTOR AMERICA
Window switch connector Pin NO Description
G16108930Courtesy of HYUNDAI MOTOR AMERICA
 1 Window motor (Up)
2 -
3 Window motor Down
4 Driver side switch window motor (Up)
5 Symbol lamp power
6 Window lock power
7 Ground
8 Driver side switch window motor Down (Down)
