Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Disconnect the crankshaft position sensor connector.

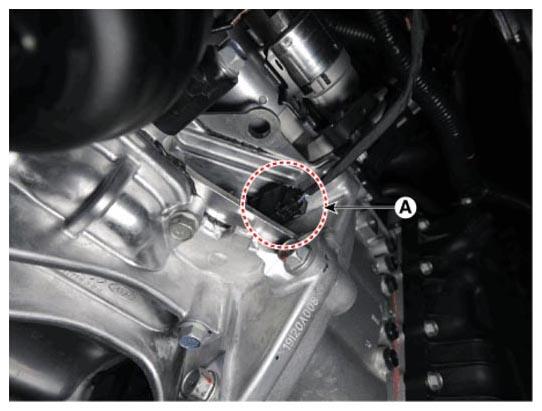

- Remove the crankshaft position sensor (A) after loosening mounting bolt.
Crankshaft position sensor mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
