LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2024
>>
Venue Limited
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
IVT Control System
>>
Parking Sprag
>>
Components and Components Location
Components and Components Location

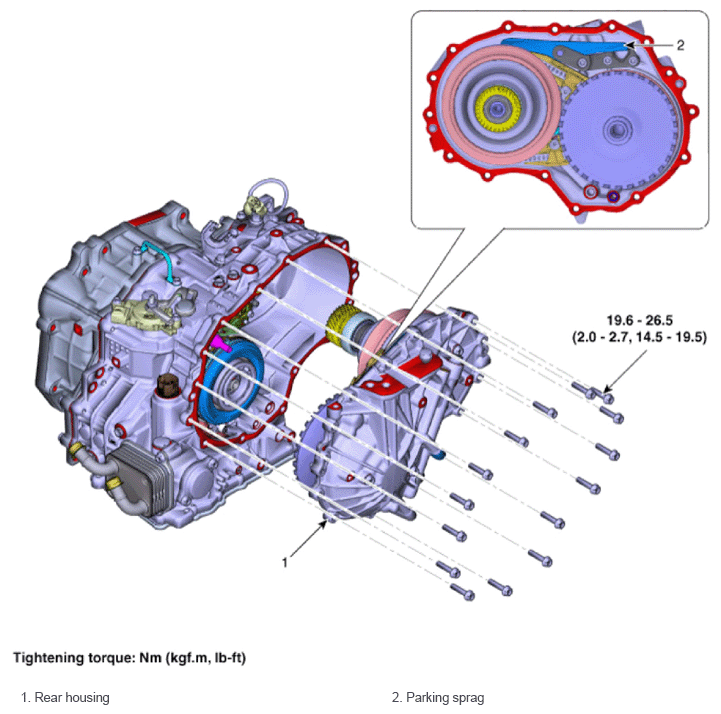

Fig 1: Parking Sprag Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
