Active Purge Pump Sensor [Front]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the ECM.

    (Refer to Engine Control/Fuel System  - "ENGINE CONTROL MODULE (ECM) REPAIR PROCEDURES ")

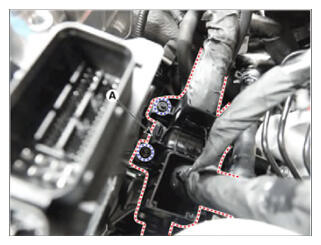

  3. Separate the wiring protector (A) after loosening the mounting nuts.

    Tightening torque:

    8.9 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb.ft)

    G16120035Courtesy of HYUNDAI MOTOR AMERICA

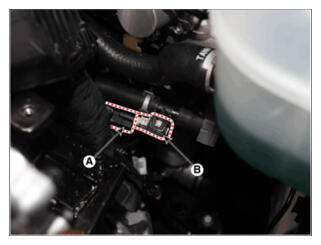

  4. Disconnect the front active purge pump sensor connector (A).
  5. Release the fixing hook and then remove the active purge pump sensor (B).
    G16120036Courtesy of HYUNDAI MOTOR AMERICA
