[MPI Injector]
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

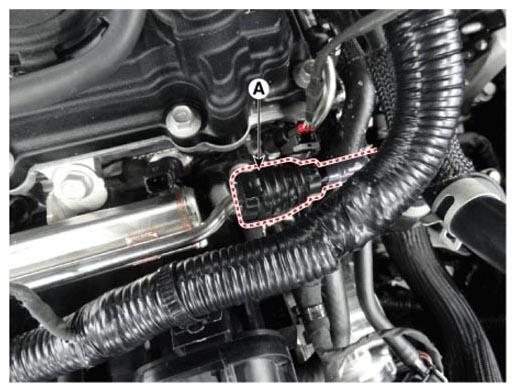

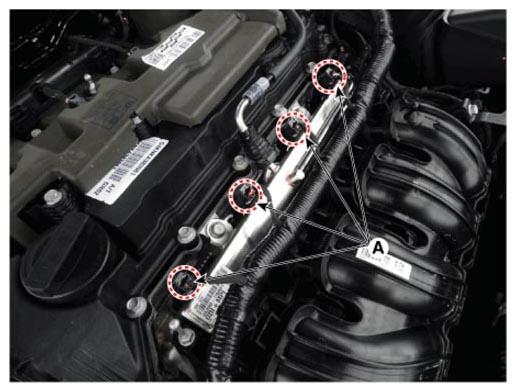

- Disconnect the injector connector (A).

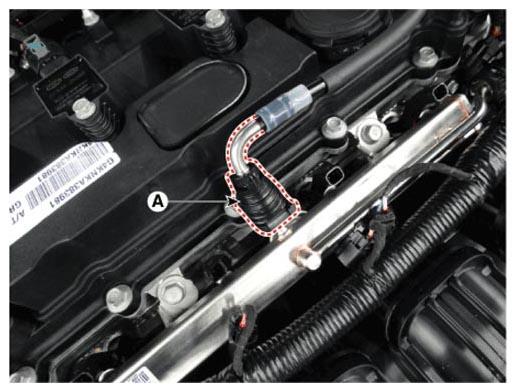

- Disconnect the fuel feed quick-connector (A).NOTE:
- Open the clamp cover (A) before disconnecting the quick-connector. (If the clip is applied)

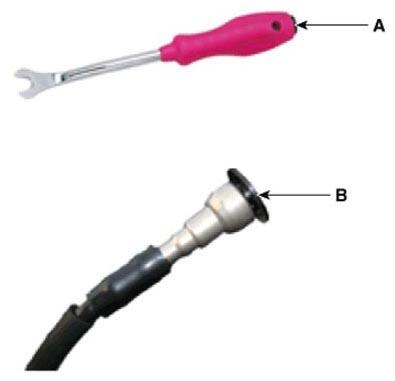

- When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, it can cause a fuel leak due to bad connection and could result in a fire.
- Open the clamp cover (A) before disconnecting the quick-connector. (If the clip is applied)

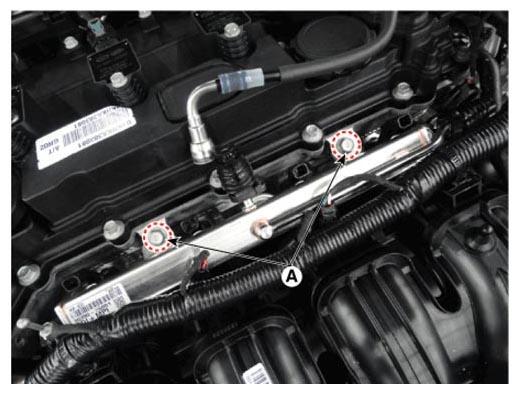

- Remove the delivery pipe after loosening the mounting bolt (A).
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)

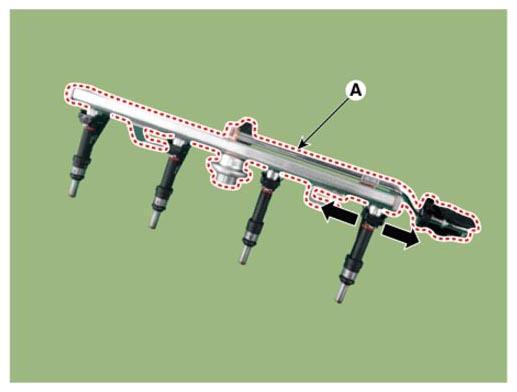

- Remove the injector from the delivery pipe (A) after releasing the fixing clip both side as shown below.
