[MPI Injector]
- Release the Residual Pressure in Fuel Line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

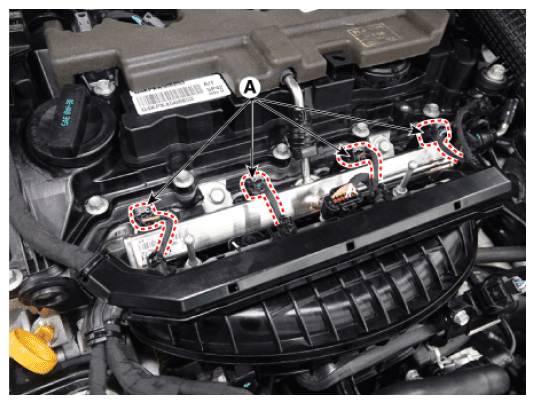

- Disconnect the injector connector (A).

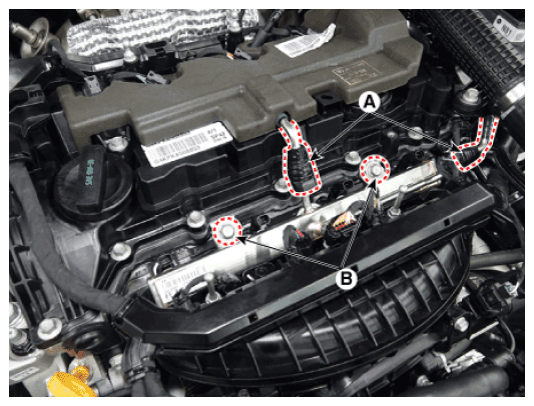

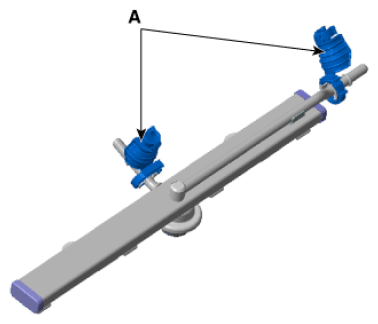

- Disconnect the fuel delivery quick-connector (A).
- Remove the delivery pipe mounting bolt (B).
Tightening torque :
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)
NOTE:- Open the clamp cover (A) before disconnecting the quick-connector. (If the clip is applied)

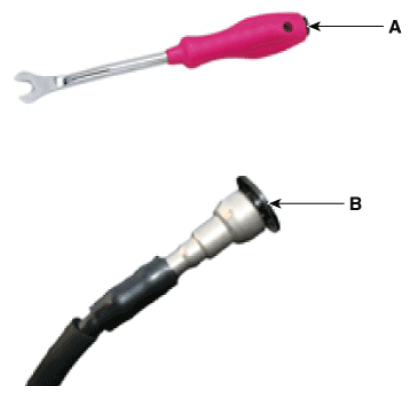

- When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, it can cause a fuel leak due to bad connection and could result in a fire.
- Open the clamp cover (A) before disconnecting the quick-connector. (If the clip is applied)

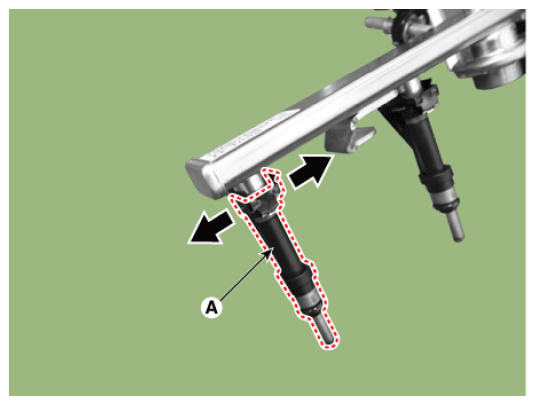

- Release the fixing clip, and then separate the injector (A) from the delivery pipe.
