Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY (EXCEPT HEV) ")

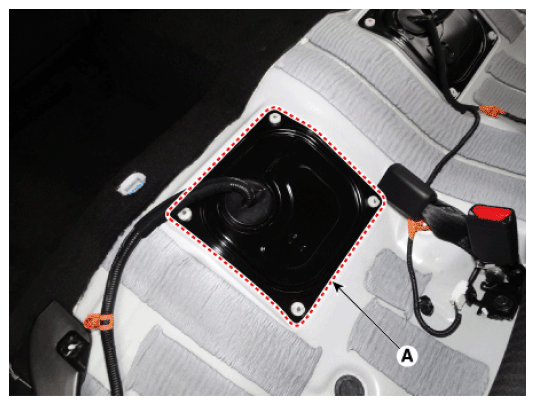

  3. Remove the fuel pump service cover (A).
    G16742812Courtesy of HYUNDAI MOTOR AMERICA

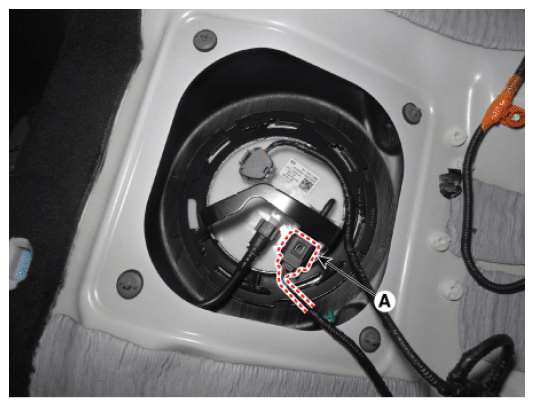

  4. Disconnect the fuel tank pressure sensor connector (A).
    G16742813Courtesy of HYUNDAI MOTOR AMERICA

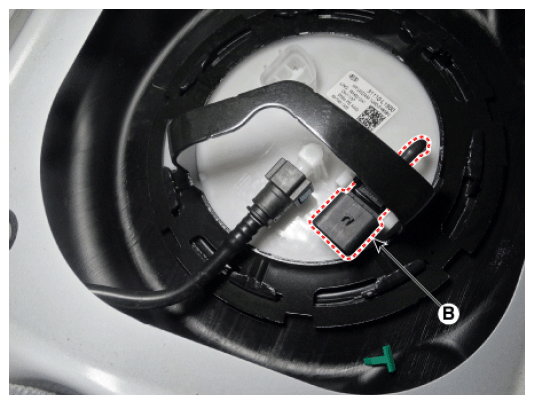

  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G16742814Courtesy of HYUNDAI MOTOR AMERICA
