Repair Procedures: Inspection

  1. Check the signal waveform of the CMPS and CKPS using the diagnostic tool.

    Specification  : Refer to "Figure below"

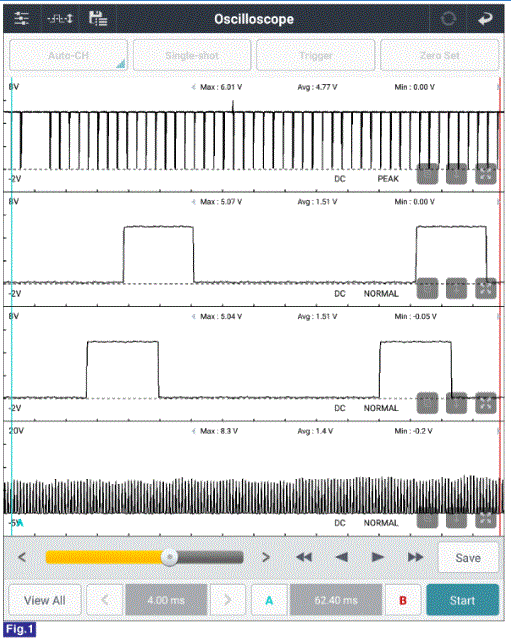

    Fig 1: Fig.1) Normal signal waveform of CKPS, CMPS-In/Ex and E-CVVT motor at engine idle
    G00644046Courtesy of HYUNDAI MOTOR AMERICA
