Compensation Requirement And Procedure

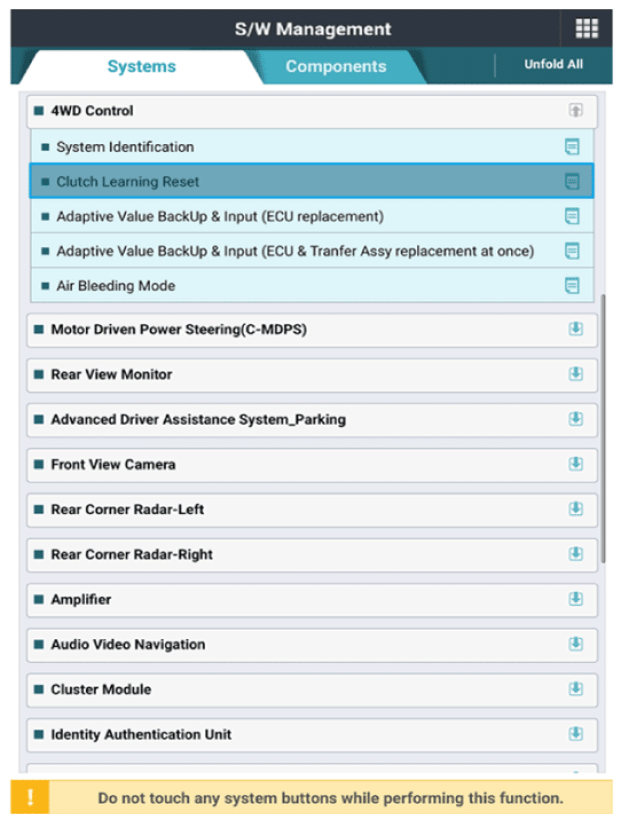

  1. Replacement of coupling only
    G17091640Courtesy of HYUNDAI MOTOR AMERICA

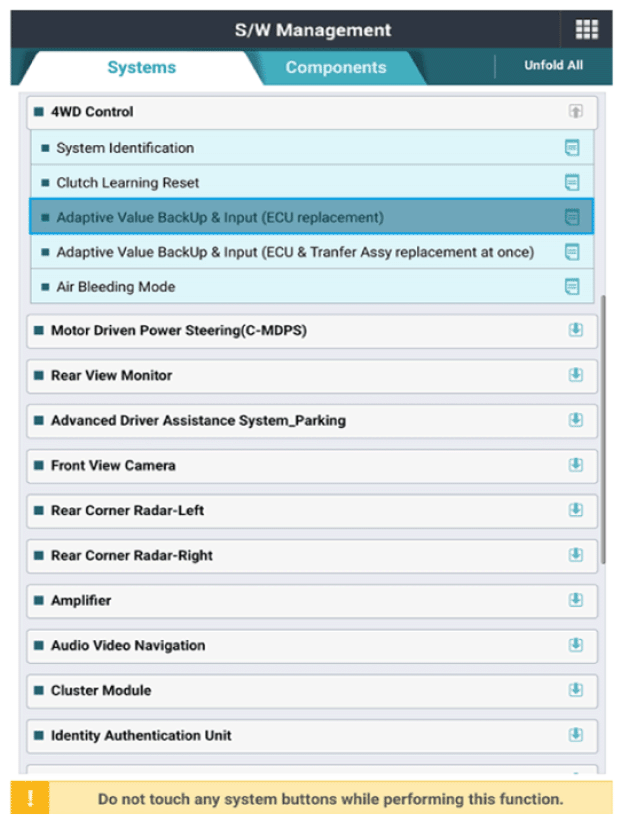

  2. Replacement of 4WD ECU (Controller) only
    G17091641Courtesy of HYUNDAI MOTOR AMERICA

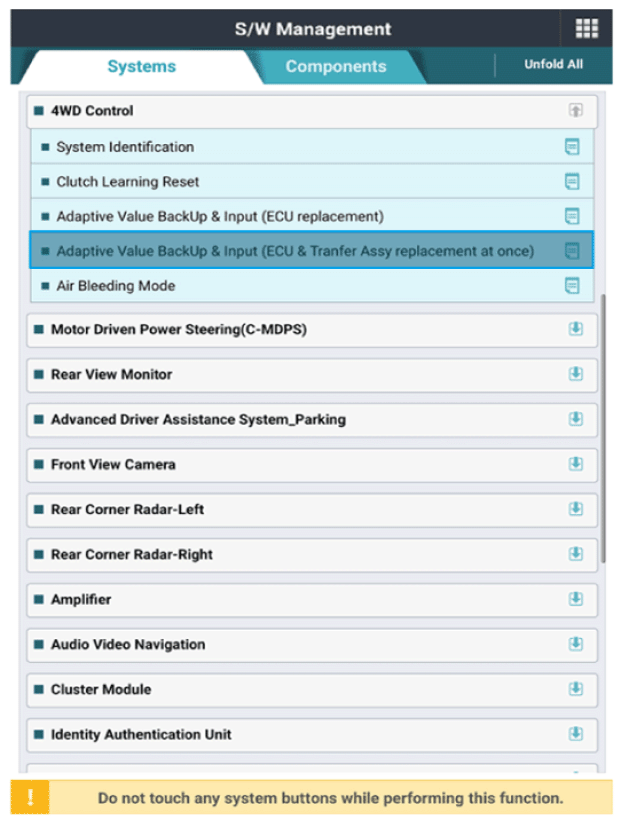

  3. Simultaneous replacement of 4WD ECU (Controller) and coupling
    G17091642Courtesy of HYUNDAI MOTOR AMERICA

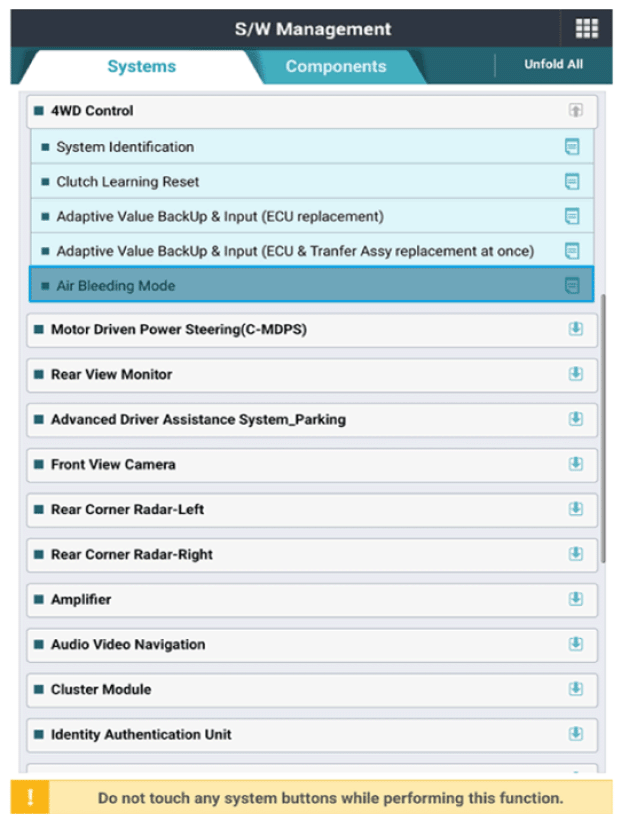

  4. Perform the following procedure in case of the appearance of failure code (P182900, P183600).
    G17091643Courtesy of HYUNDAI MOTOR AMERICA
